Single Screw Plastic Pipe Extrusion Line 20 - 630mm PE Pipe Extruder Machine

Plastic Pipe Extrusion Line / PE Water Supply Pipe Production Line / 20-630mm PE Pipe Extruder

Quick detail:

1. Special single screw extruder for polyolefin , having high extruding velocity and effective plasticization. Sepwration mixing screw specialized for polyolefin. Specially designed 2-3 co-extruding die, reasonable channel , smooth outside and inside wall ,and little internal stress. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min. May be used to produce HDPE silicon core tube , ordinary PP-R , PE PEX and PE-RT.

2. What is the feature of our PE Pipe Mahcine
1.High efficiency single screw extruder.
2.It can produce hdpe water/gas pipes.
3.The pipe diameter range:20-630mm or customes request.
4.This hdpe hoes is mostly used as city water and gas supply system and so on.

Description:

1. PE pipe making machine/production line/extrusion line

PE pipe mainly used in water purifiers, pure water machine, pipe machine, water purification machines in and out of the water connection. USES The vacuum shaping box, high precision, smooth wall. The burst pressure: > 25 mpa. Using pressure: 16 mpar.

2.PE/ PPR plastic pipe machine extrusion line is mainly composed of single screw extruder SJ-65/30 or SJ-90/30, single screw extruder SJ25/25 for mark line, die head and moulds with sizing sleeve, vacuum sizing equipment, sprinkling cooling water tank, haul off, cutter, reversal stacker, etc.

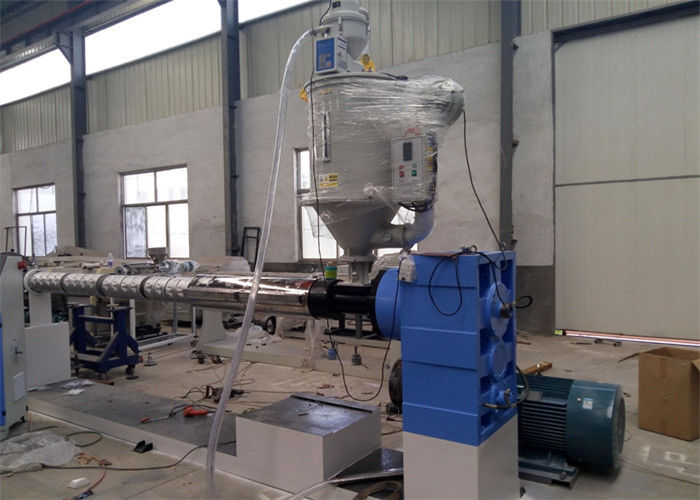

3. Single screw extruder adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.

Extrusion die head is spiral type, good calibrating makes good quality pipe production.
Inner heating system, high efficient, easy extrusion. Bronze calibrators can make the pipes fast calibrated and cooled.

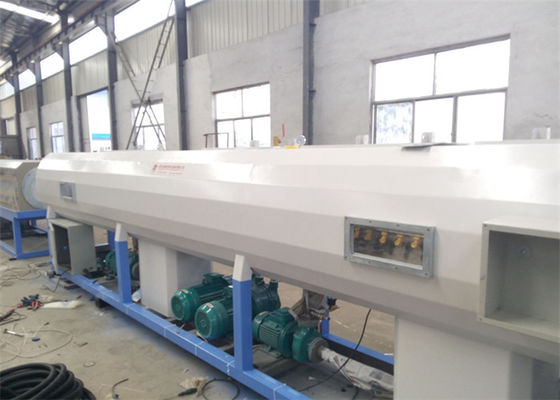

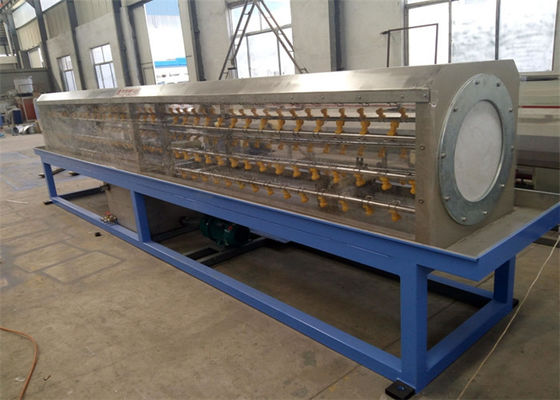

Vacuum calibrating tank and water spraying cooling tank adopts advanced water circulation, high pressure cooling system, installed with vacuum degree adjusting device and automatic water temperature and water level controlling system.

Haul-off machine adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight-claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes.


Specifications:

Competitive Advantage:

• 24 hours services;
• Overseas installation;
• Free operation training and technology formula transfer;
• Old machine update;
• Spare parts and maintenance with reasonable cost price.
