Non - Toxic PE HDPE Plastic Extrusion Line / Production Line Fully Automatic

PE HDPE Plastic Pipe Production Line / PE Pipe Extrusion Machine

Quick detail:

1. Our PE pipe production line is mainly used in the production of water supply and drainage pipes , which used for water supply, natural gas and gas transmission, landscaping pipe network, sewage treatment and power threading. This line is characterized of reliable performance, high production efficiency and anti-noise.

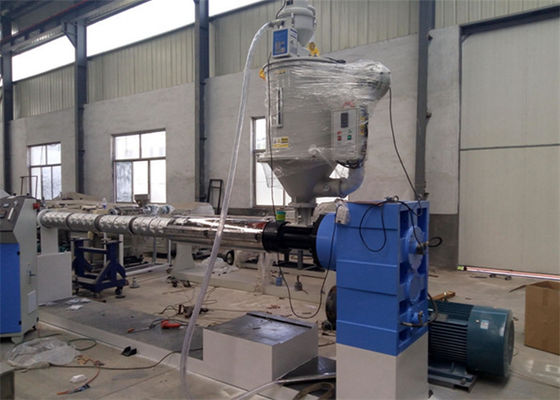

2. Single screw extruder:
Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

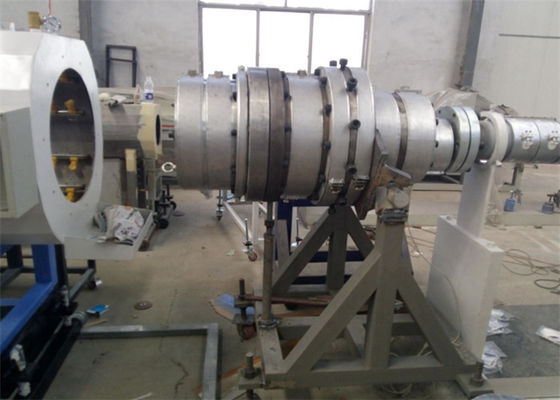

3. PP PE pipe Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

Description:

1.This qualified extrusion line is main for producting PE pressure pipes,discharge pipe line for chemical and food fields,protection and conduit pipes for electrie cables and communication wire,fishpond edge guardrail pipes etc. It can process various LDPE HDPE,especially process granules directly into pipe shape.

2.Working flow

Mixer→ Vacuum feeding →Material dry → Single screw extruder →Marking line extruder(co-extrusion)→Vacuum calibration spraying cooling tank → Spraying cooling tank→ Color-ribbon printer → Haul-off machine →Cutter →Stacker

3.Application:

1.Urban tap water pipe network system

Large diameter PE pipe, health non-toxic, not fouling, more suitable for urban water supply main conduit and buried tube, safety, hygiene, convenient construction.

2. Agriculture irrigation pipe

PE pipe inside sleek, great flow, cross road construction, good impact resistance, it is the ideal tool for agricultural irrigation.

3.Industrial materials duct

Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.

4.Landscaping water supply network

Landscaping need lots of water pipe, PE pipe toughness and low cost, make it become the best choice.

5.Sewage discharge pipes

PE pipe have unique corrosion resistance, can be used in industrial wastewater, sewage discharged pipe, low costs and maintenance costs .

Specifications:

Competitive Advantage:

• 24 hours services;
• Overseas installation;
• Free operation training and technology formula transfer;
• Old machine update;
• Spare parts and maintenance with reasonable cost price.
