Product Details:
|
| Condition: | New | Type: | Pipe Making Machine |
|---|---|---|---|
| Pipe Material: | PVC | Application: | Electric Conduits |
| Place Of Original: | Shandong , China | Certificate: | CE ISO9001 |
| Warranty: | 12 Months | After-sales Service: | Engineers Availiable To Service |
| High Light: | plastic extruder machine,plastic extrusion machine |
||
PVC Twin Pipe Extrusion Production Line / 16-63mm PVC Twin Pipe Extrusion Line
Quick detail
1. First class pipe die was designed with many years experience. Pefect twin pipe vacuum sizing systerm. Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device. Optional length set and accurate adaption stacker.
2. PVC Twin Pipe Production Line:
2.1.Pipe diameter:16-50mm
2.2.Capacity:120-250kg/h
2.3.CE&ISO9001 certificate
2.4.1year guarantee
Description:

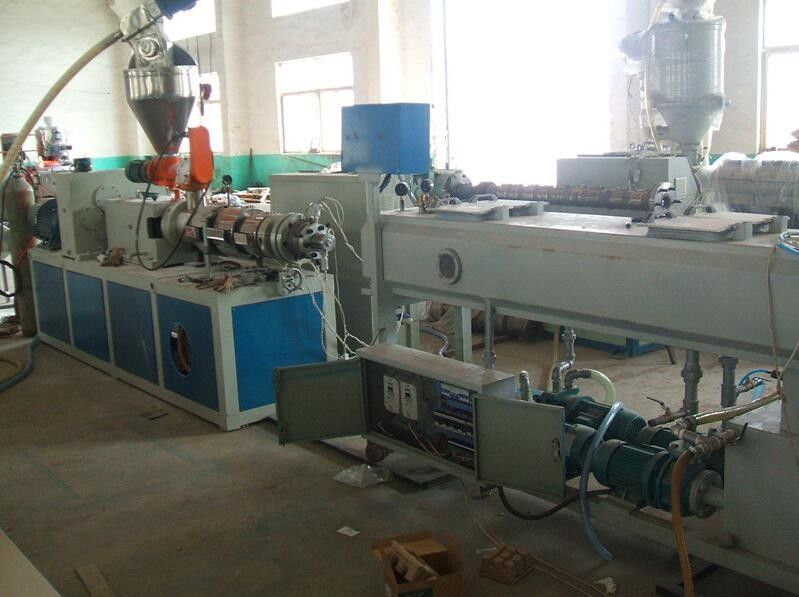

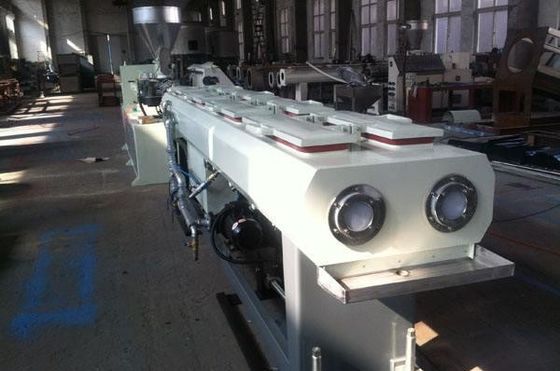

1. This production line include: Raw material loader, extruder, moulds, vacuum calibration tank, water cooling tank, haul-off machine, cutting machine, winding machine, and also optional printing machine, mixing machine.
2. This series of pipe extrusion lines are mainly used to produce PVC drainage pipes and U-PVC, C-PVC water supply pipes.
3. Advanced design for screws supplies powerful safeguard for the PVC plasticization.Unique inside oil controlling temperature system adapts different technology formulas.

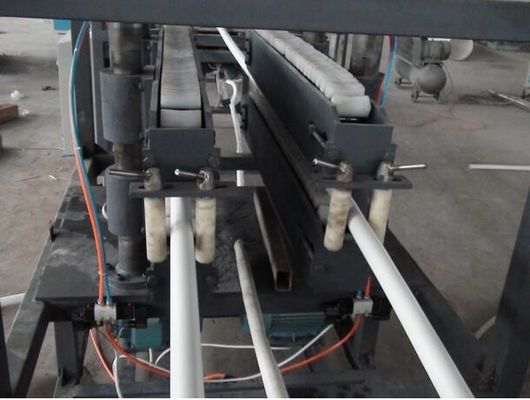

4. The extruder and haul-off machine adopt the imported AC frequency control device,The vacuum pump and hauling motor employ superior goods. Haul-off machine of different specifications, such as two caterpillars, three caterpillars, four caterpillars, six caterpillars etc are designed for different requirements. It is additionally attched with length measuring apparatus and thickness increasing device .The unit is of reliable performance and high production efficiency .
5. pvc twin pipe extrusion line/pvc pipe for water line/plastic pvc pipe production line : Process flow
PVC powder + additive --- mixing---spring feeder---twin screw extruder---mould and calibrator---vacuum forming machine---haul-off machine---cutting machine---discharge rack
Main Technical Parameters:
| Item | PVC50 | PVC160 | PVC250 | PVC315 | PVC400 |
| Specification | 16-50 | 63-160 | 160-250 | 250-315 | 200-400 |
| Extruder | SJSZ48/112 | SJSZ65/132 | SJSZ80/156 | SJSZ80/156 | SJSZ80/156 |
| Mould | 1 suit | 1 suit | 1 suit | 1 suit | 1 suit |
| Vacuum shaped tank | 4000mm | 6000mm | 6000mm | 6000mm | 6000mm |
| vacuum pressure(Mpa) | -0.03~0.08 | 0.03~0.08 | -0.03~0.08 | 0.03~0.08 | -0.03~0.08 |
| Max traction force(N) | 10000 | 15000 | 20000 | 25000 | 30000 |
| Traction speed/min/max | 10 | 6 | 4 | 3 | 2 |
| Effection traction length | 1000 | 1500 | 1500 | 1500 | 1800 |
| Compressed air capacity m3/h | 0.4 | 1.0 | 1.2 | 1.2 | 1.5 |
| Water consumption m3/h | 5 | 7 | 8 | 8 | 9 |
Application:
This PVC pipe production line is mainly used to produce PVC pipes, which is widely used as water supply pipe, drainage pipe, cable and wire protection pipe
Our advantage:
1. good pre-sale and after-sale service
2. engineers availiable to service
3. we are factory , welcome to visit our factory to test the machine
4. CE ISO9001 Certificate
5. overseas to installation
