Product Details:
|
| Condition: | SJSZ65/132 | Plastic Processed: | PVC |
|---|---|---|---|
| Screw Design: | Double Screw | Automatic Grade: | Fully Automatic |
| Condtion: | New | Motor: | Siemens |
| Incerter: | ABB | Place Of Original: | Shandong , China |
| High Light: | plastic extrusion machine,plastic production line |
||
High Extrusion Speed PVC Twin Pipe Production Line / PVC Water Pipe Extrusion Machine
Quick detail
1. high output pvc twin pipe production line 16-63mm
1)pipe diameter :16-63mm
2) extruder: CTS-2-65/132
3)high quality with competitive price PVC Twin Pipe Production Line
2. High quality SJSZ-65/132 PVC twin screw extruder/PVC pipe production line/pvc extruder linespecially designed for the PVC powder extruding, it combined use with the PVC pipe
production line, PVC profile production line, PVC sheet production line; It also can be used for WPC profiles extruding.
Description:

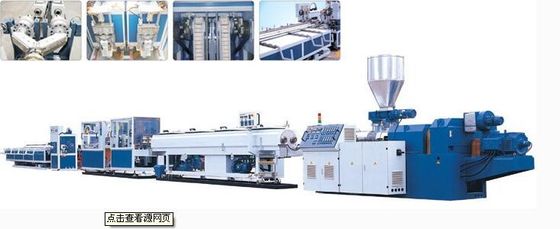

1. PVC double pipe production line is developed for high output of double pipe extrusion.The main machine is SJSZ51/105 or SJSZ65/132 conical double screw extruder, which is equipped with double-tube single-control. stainless steel spraying shaper to form a production line. It avoids a waste condition when one tube is adjusted and the other one is affected.
2. The auto single-control double drawing machine and cutting are combined with the front shaping technology to make operation more flexible.The diameter of the extruded pipe is from 20-63mm. It can fully use the extruding capacity of the extruder. Even if it producces small diameter pipe,

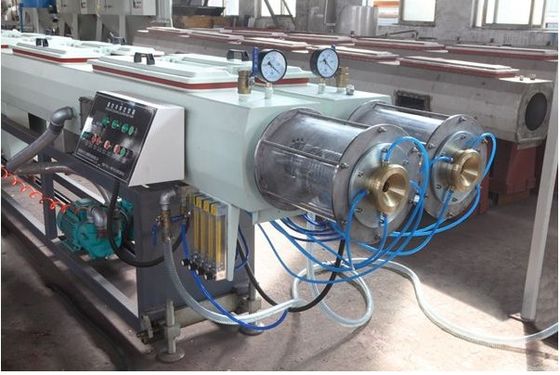

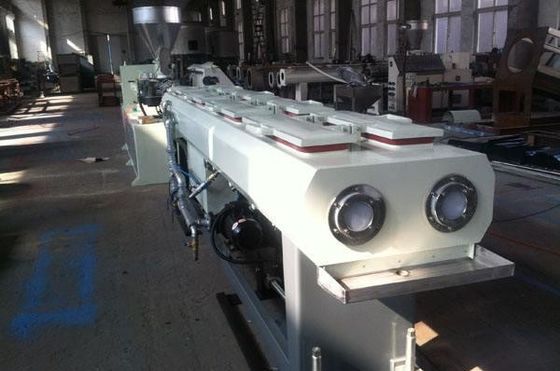

3. Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; Special spray cooling system improves the cooling efficiency; Special water position, water temperature system make the machine more intelligent.

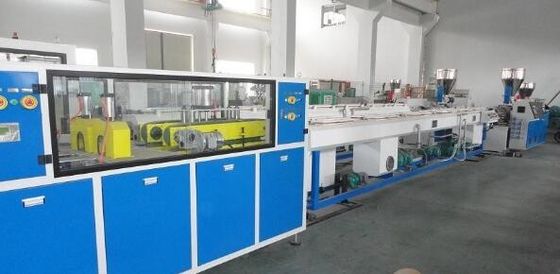

4. Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.
Cutting system adopts saw blades and planetary cutting means; Sumping uses hydraulic system, which ensures the smooth cross section; Equipped with dust-collecting unit, which ensures the clean working environment.
Main Technical Parameters:
| Item | PVC50 | PVC160 | PVC250 | PVC315 | PVC400 |
| Specification | 16-50 | 63-160 | 160-250 | 250-315 | 200-400 |
| Extruder | SJSZ48/112 | SJSZ65/132 | SJSZ80/156 | SJSZ80/156 | SJSZ80/156 |
| Mould | 1 suit | 1 suit | 1 suit | 1 suit | 1 suit |
| Vacuum shaped tank | 4000mm | 6000mm | 6000mm | 6000mm | 6000mm |
| vacuum pressure(Mpa) | -0.03~0.08 | 0.03~0.08 | -0.03~0.08 | 0.03~0.08 | -0.03~0.08 |
| Max traction force(N) | 10000 | 15000 | 20000 | 25000 | 30000 |
| Traction speed/min/max | 10 | 6 | 4 | 3 | 2 |
| Effection traction length | 1000 | 1500 | 1500 | 1500 | 1800 |
| Compressed air capacity m3/h | 0.4 | 1.0 | 1.2 | 1.2 | 1.5 |
| Water consumption m3/h | 5 | 7 | 8 | 8 | 9 |
Application:
This PVC pipe production line is mainly used to produce PVC pipes, which is widely used as water supply pipe, drainage pipe, cable and wire protection pipe
Our advantage:
1. good pre-sale and after-sale service
2. engineers availiable to service
3. we are factory , welcome to visit our factory to test the machine
4. CE ISO9001 Certificate
5. overseas to installation
