Product Details:
|
| Brand Name: | AORUI | Model Number: | SJSZ51/105 |
|---|---|---|---|
| Raw Material: | PVC | Automatic Grade: | Fully Automatic |
| Condition: | New | Temperature Controller: | Omron |
| Frequency Control: | ABB | Certificate: | CE ISO9001 |
| High Light: | plastic extruder machine,plastic extrusion machine |
||
PVC Twin Screw Extruder / PVC Twin Pipe Production Line / PVC Twin Pipe Extrusion Line
Quick detail
1. GPM series PVC Pipe Production Line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. purposes. The unit consists of conical double/ parallel double extruder, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade tubing.
2.What is the feature of our PVC Hose Mahcine
2.1.High efficiency twin screw extruder.
2.2.It can produce pvc pipes.
2.3.The pipe diameter range:16-63mm or customes request.
2.4. The pvc pipe is mostly used in construction industry water supply, drain,electrical cable coating and under ground sweage treatment and so on.
Description:

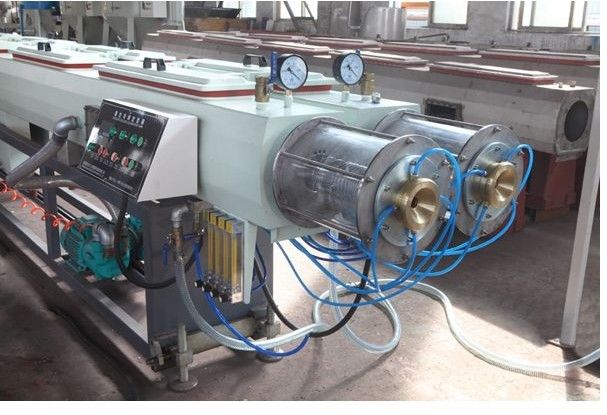

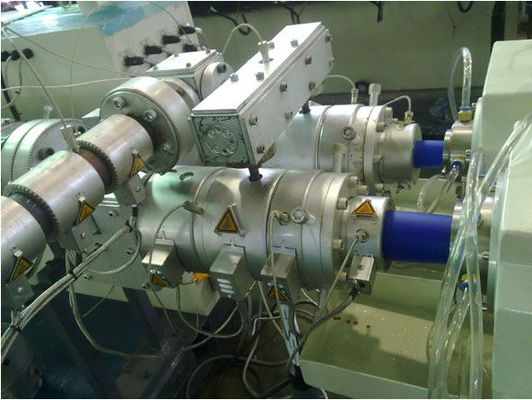

1. First class pipe die was designed with many years experience, perfect twin pipe vacuum sizing systerm,controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device, optional length set and accurate adaption stacker.
2. The extrusion line incorporates a highly efficient conical twin-screw extruder which is suitable for process PVC powder with high capacity, maximum extrusion capacity up to 1,000 Kg/h; Nice out-look, automatic control and stable running performance; The Haul-off unit can have two claws, three claws, four claws, six claws or eight claws, depending on the pipe diameter; Auxiliary machines closely meet customer specifications.
3. Twin screw extruder with Automatic feeding system -- SJZ xx series conical twin screw extruder: (The model according to the sizes of final products to choose) The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
Main Technical Parameters:
| Item | PVC50 | PVC160 | PVC250 | PVC315 | PVC400 |
| Specification | 16-50 | 63-160 | 160-250 | 250-315 | 200-400 |
| Extruder | SJSZ48/112 | SJSZ65/132 | SJSZ80/156 | SJSZ80/156 | SJSZ80/156 |
| Mould | 1 suit | 1 suit | 1 suit | 1 suit | 1 suit |
| Vacuum shaped tank | 4000mm | 6000mm | 6000mm | 6000mm | 6000mm |
| vacuum pressure(Mpa) | -0.03~0.08 | 0.03~0.08 | -0.03~0.08 | 0.03~0.08 | -0.03~0.08 |
| Max traction force(N) | 10000 | 15000 | 20000 | 25000 | 30000 |
| Traction speed/min/max | 10 | 6 | 4 | 3 | 2 |
| Effection traction length | 1000 | 1500 | 1500 | 1500 | 1800 |
| Compressed air capacity m3/h | 0.4 | 1.0 | 1.2 | 1.2 | 1.5 |
| Water consumption m3/h | 5 | 7 | 8 | 8 | 9 |
Application:
This PVC pipe production line is mainly used to produce PVC pipes, which is widely used as water supply pipe, drainage pipe, cable and wire protection pipe
Our advantage:
1. good pre-sale and after-sale service
2. engineers availiable to service
3. we are factory , welcome to visit our factory to test the machine
4. CE ISO9001 Certificate
5. overseas to installation
