| Brand Name: | AORUI |
| Model Number: | SJ65/33 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 30 sets per quarter |

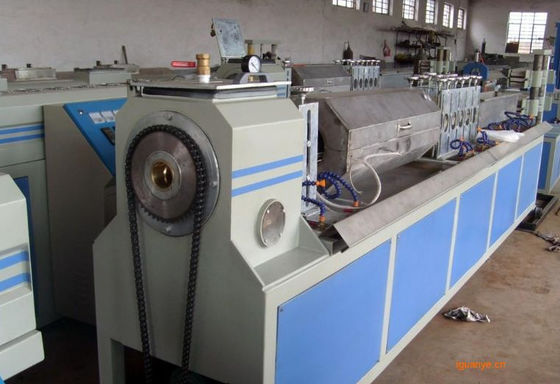

High Output PE Sprial Pipe Production Line / Corrugated Optic Duct Cable Protection Sleeve Pipe Production Line
Quick detail:
1. All kind of polyolefine material ,multi-layers sprial strengthening pipe can be co-extruded for various uses,80% of recycle material can be used in production.

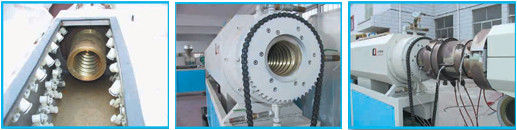

2. Optimumsprial bronze sizing sleeve pre-cooling and powerful vacuum suction device in the entrance , suiting for high speed extrusion of pipes.
3. Specific design for spary clooling trough. Cooling water trough is made of stainless steel. High efficient cooling comes from peculiar spraying riozzle and high efficiency water pump.
4. Three-dimensional regulation , longitudinal move by motorp. Advanced co-extrusion technology , lower the cost for using recycling material. Matvhes machinery special composite die, this unit may use composite extrusion underground corrugated optical duct.
Description:
1. The basic framework of spiral air pipe forming machine consists of a very rpbust welded construction. this welded construction allows the machine to be used both in the production workshop as well as on site.
Transport is possible without great expense and without protracted re-adjustment.
2. Characteristics of the pipes produced:
high intensity and tenancy, erosion resistance, constant shape and easy transportation and execution, etc. They can be processed and bent into long pipes with various radians.
3. PE carbon spiral pipe machine is mainly used to produce PE pipes which are largely used as protecting sleeves of electricity,telecom,post activities,constructions of express way,port, etc.
4. Main Features on Plastic Drainage Pipe Machine HDPE Hollow Sprial Winding Pipe Extrusion
1)Used PE material to extrude winding pipe for sewer and irrigation field,
2)Outlook complete and unify, SIEMENS PLC digital control,
3)Winding driven by gimbals coupling instead of chains to performance is more stable and reliable
4)Optional three work station cutting system, and air cylinder unloading unit
5)Bigger motor power and high-efficiency screw and special design of mould and calibrator.
6)Diameter range is from 200mm to 3000mm.
Specifications:
| Diameter range | Φ80-Φ1500mm |
| Tube Length | 125-6000mm |
| Thickness of Strip | 0.4-1.2mm |
| Width of Strip | 137-140mm |
| Strip Speed | 1-38/min |
| Dimension (L x W x H): | 2650*1550*2000mm |
| Lockseam | Outside tube,on the inside on request |
| Weight | 2200kg |
| Control System | PLC automatic control |
| Compressed air power | 0.5-0.7kmp |
| Electrical |
380V/3PH/50HZ (Acorrding to customer’s request) |
| Main Motor Power | 5.5kw |
| The power of cutting motor | 4kw |
| Suitable Material | Aluminum, Stainless steel, Galvanized steel |
Applications of the pipes produced:
protecting sleeves of optic or electric cable, and they are increasingly used in fields of electricity, telecom, post activities, constructions of express way, port, etc.
Competitive Advantage:
1 . High capacity and stable operation
2 . Long service life and good quality
3 . Low energy consumption
4. Our engineers can go to aborad to service , install the machine nad test the machine.
5. We have CE&ISO9001 certificate
