Product Details:
|
| Brand Name: | AORUI | Certificate: | CE ISO9001 |
|---|---|---|---|
| Screw Design: | Single Screw | Warranty: | 12 Months |
| Dlivery Time: | About 35days | Automatic Grade: | Fully Automatic |
| Port: | Qingdao | Condition: | New |
| High Light: | plastic extruder machine,plastic production line |
||
PE Carbon Sprial Reinforcing Pipe Production Line / PE Pipe Manufacturer
Quick detail:
1.This production line is mainly used to produce water supply or gas transmitting PE Pipe
Components
1. Automatic Feeder 2. Hopper Dryer 3. Single-screw extruder 4. Mould 5. Vacuum Calibration Tank 6. Spray Box 7. Haul-off Machine 8. Cutting 9. Stacker
Feature:
2. Single screw extruder, very suitable to process PE resin with high capacity, max capacity 1000kg/h
3. The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
4. Diameter range is 16mm-800mm, which can be changed into inch standard to meet client's special requirement.
Description:
1. Special single screw extruder for the use of polyolefine material , high speed extrusion and effective plasticization. The special detachment type mixing screw and the standard designed die with sprial structure & reasonable channel are applicable to produce pipes with smooth inside and outside face.

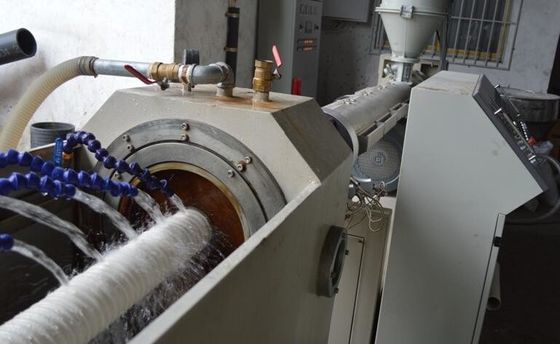

2. Unique sizing and cooling mode is capable of producing pipe scope 50-200mm , production speed is up to 0.6-1.5m/min. Machinery is in sole possession of the special design to sizing cooling way to make the speed for leading position of the same line.

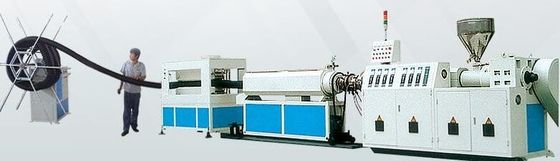

3. The PE Spiral Pipe Production Line has characteristics of compact conformation, good appearance and high efficiency. By adopting high performance extruder and automation system, it runs stably and produces high quality pipes.

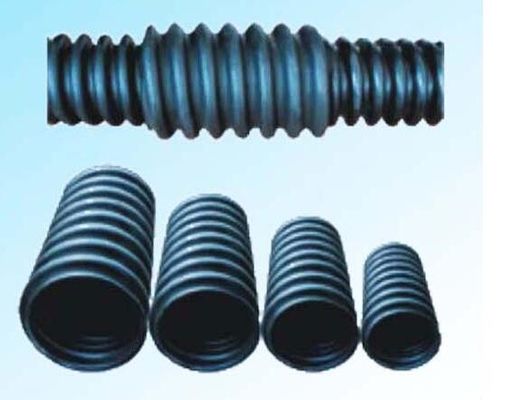

4. The PE Spiral Pipe Extrusion Line is mainly used for producing PE spiral pipe. This kind of pipe has characteristics of high strength, high toughness, anti-corrosion, light weight, long service life and anti-deformation; it is widely used in cable protection and vented exhaust. It is an ideal alternative of cast iron pipe, rubber pipe and PVC pipe.
Specifications:
| Diameter range | Φ80-Φ1500mm |
| Tube Length | 125-6000mm |
| Thickness of Strip | 0.4-1.2mm |
| Width of Strip | 137-140mm |
| Strip Speed | 1-38/min |
| Dimension (L x W x H): | 2650*1550*2000mm |
| Lockseam | Outside tube,on the inside on request |
| Weight | 2200kg |
| Control System | PLC automatic control |
| Compressed air power | 0.5-0.7kmp |
| Electrical |
380V/3PH/50HZ (Acorrding to customer’s request) |
| Main Motor Power | 5.5kw |
| The power of cutting motor | 4kw |
| Suitable Material | Aluminum, Stainless steel, Galvanized steel |
Applications of the pipes produced:
protecting sleeves of optic or electric cable, and they are increasingly used in fields of electricity, telecom, post activities, constructions of express way, port, etc.
Competitive Advantage:
1 . High capacity and stable operation
2 . Long service life and good quality
3 . Low energy consumption
4. Our engineers can go to aborad to service , install the machine nad test the machine.
5. We have CE&ISO9001 certificate
