Product Details:
|
| Brand Name: | AORUI | Model Number: | SJ90/33 |
|---|---|---|---|
| Place Of Original: | Shandong , China | Automatic Grade: | Fully Automatic |
| Type Of Extruder: | Single Screw | Application: | Pe Pipe Making Machine |
| Motor: | Siemens | Certificate: | CE ISO9001 |
| High Light: | plastic extruder machine,plastic production line |
||

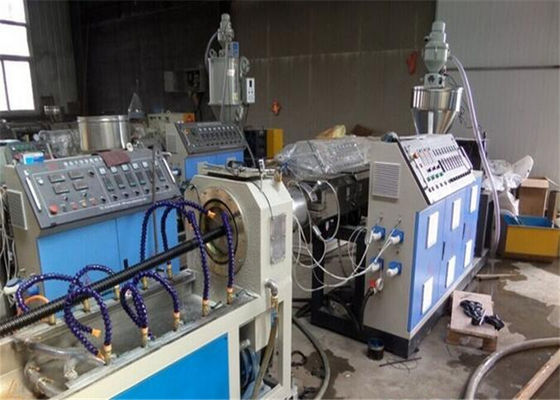

PE HDPE Sprial Reinforcing Pipe Production Line / PE Carbon Plastic Pipe Extruder
Quick detail:

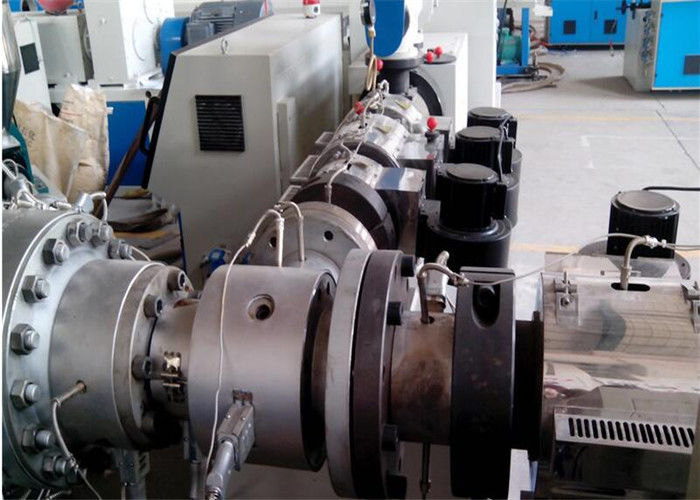

1. Special single screw extruder for the use of polyolefine material , high speed extrusion and effective plasticization. The special detachment type mixing screw and the standard designed die with sprial structure & reasonable channel are applicable to produce pipes with smooth inside and outside face.
2. Unique sizing and cooling mode is capable of producing pipe scope 50-200mm , production speed is up to 0.6-1.5m/min. Machinery is in sole possession of the special design to sizing cooling way to make the speed for leading position of the same line.
Description:
1. All kind of polyolefine material ,multi-layers sprial strengthening pipe can be co-extruded for various uses,80% of recycle material can be used in production.
2. Optimumsprial bronze sizing sleeve pre-cooling and powerful vacuum suction device in the entrance , suiting for high speed extrusion of pipes.

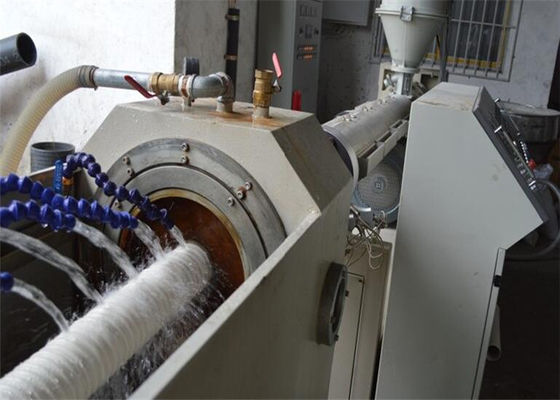

3. Specific design for spary clooling trough. Cooling water trough is made of stainless steel. High efficient cooling comes from peculiar spraying riozzle and high efficiency water pump.
4. Three-dimensional regulation , longitudinal move by motorp. Advanced co-extrusion technology , lower the cost for using recycling material. Matvhes machinery special composite die, this unit may use composite extrusion underground corrugated optical duct.
Specifications:
| Diameter range | Φ80-Φ1500mm |
| Tube Length | 125-6000mm |
| Thickness of Strip | 0.4-1.2mm |
| Width of Strip | 137-140mm |
| Strip Speed | 1-38/min |
| Dimension (L x W x H): | 2650*1550*2000mm |
| Lockseam | Outside tube,on the inside on request |
| Weight | 2200kg |
| Control System | PLC automatic control |
| Compressed air power | 0.5-0.7kmp |
| Electrical |
380V/3PH/50HZ (Acorrding to customer’s request) |
| Main Motor Power | 5.5kw |
| The power of cutting motor | 4kw |
| Suitable Material | Aluminum, Stainless steel, Galvanized steel |
Applications of the pipes produced:
protecting sleeves of optic or electric cable, and they are increasingly used in fields of electricity, telecom, post activities, constructions of express way, port, etc.
Competitive Advantage:
1 . High capacity and stable operation
2 . Long service life and good quality
3 . Low energy consumption
4. Our engineers can go to aborad to service , install the machine nad test the machine.
5. We have CE&ISO9001 certificate
