Product Details:
|
| Brand Name: | AORUI | Condition: | New |
|---|---|---|---|
| Screw Design: | Single Screw | Certificate: | CE ISO9001 |
| Application: | PE Pipe Production Line | Automatic Grade: | Fully Automatic |
| Place Of Original: | Shandong , China | Delivery Time: | About 35days |
| High Light: | plastic extrusion machine,plastic production line |
||

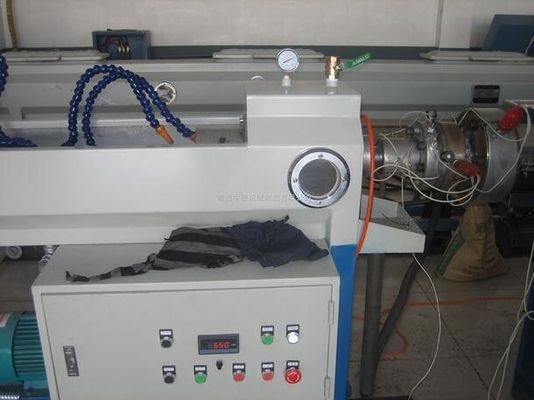

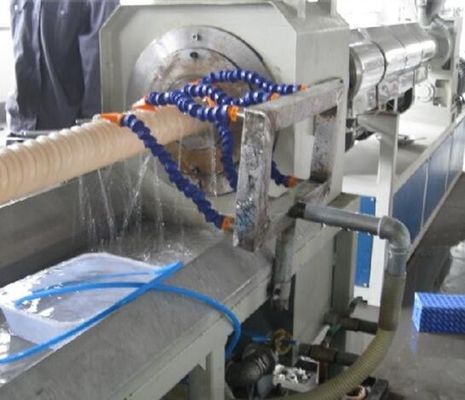

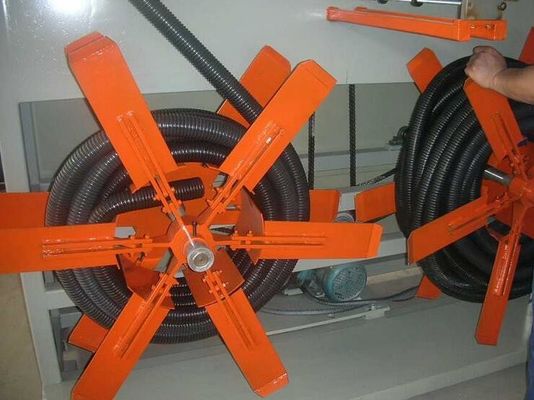

New Style and Design PE Carbon Sprial Reinforcing Pipe Production Line
Quick detail:
1.single screw extruder especially used for polyolefine material process effective plasticizing effect and high extrusion speed.
2.The special detached type compounding screw and die head with spiral structure & reasonable channel are applicable to produce smooth inside and outside face.
3.Unique calibration and cooling mode is capable of producing pipe with diameter from 50 to 200mm,production speed is up to 0.4-1.5m/min
4.All kind of polyolefin material,multi-layers spiral strengthening pipe can be co-extruded,recycled materials can be used in production.
Description:
1.The product has been widely used in ground covering project of city street lamp lines, laying and ground covering of electrified railway power and communication cables, construction and reconstruction of highway power and communication installations, cable ground covering projects of residential area construction and park and large entertainment places etc. It is the optimal ground covering cable protection pipe.
2. This machine line is used to produce carbon-fiber pipe which consisted of PE and Carbon. Regarding special structure and constituting of specific raw material, Carbon-fiber Pipe is the perfect succedaneum of cast-iron pipe, rubber hose, PVC tube, widely used in many areas, such as agricultural irrigation(suction drainage), protection of cable etc., for its various advantages: high strength, high tenacity, corrosion preventive, light weight, long operating life, rear deformation difficult
3. Special single screw extruder for the use of polyolefin material , high speed extrusion and effective plasticization.
Specifications:
|
Main machine model |
SJ-30 | SJ-50 | SJ-65 |
| Pipe diameter range (mm) | 4.5-9 | 9-38 | 16-50 |
| Main machine L/D | 30:1 | 30:1 | 30:1 |
| Production capacity (kg/h) | 10 | 40 | 80 |
| Main motor power (kw) | 4 | 15 | 18.5 |
Applications of the pipes produced:
protecting sleeves of optic or electric cable, and they are increasingly used in fields of electricity, telecom, post activities, constructions of express way, port, etc.
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
