Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ65/132 |
|---|---|---|---|
| Condition: | New | Place Of Original: | Shandong , China |
| Screw Number: | Two | Main Motro: | Siemens |
| Certificate: | CE ISO9001 | Port: | Qingdao |
| High Light: | plastic extrusion machine,plastic production line |
||
PVC Pipe Plastic Extrusion Line , High Speed PVC Pipe Extrusion Machine Plant
Quick detail
1. Equipment List:
1. Single Screw Extruder
2. Mould
3. Water Cooling Tank
4. Haul-off Machine
5. Fiber Winding Machine
6. Printer
7. Oven
8. Cutter
9. Winding Machine

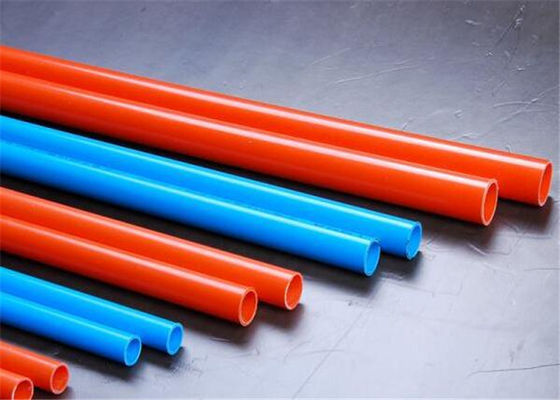

2. GF series plastic pipe material production line is mainly used in the area of agricultural water supply systerm , architectural water supply systerm , pavement of cables ,etc. As well as pvc pipe material of all sorts of pipe caliber and wall thickness.
Description:
1. Our advantage:
--- Professional technician group ensure the performance of the machine
--- More than 10 years experience to cooperate with world famous factories
--- Advanced design for screws supplies powerful safeguard for the PVC plasticization.
--- Unique inside oil controlling temperature system adapts different technology formulas.
--- Special servo motor to ensure the haul off running

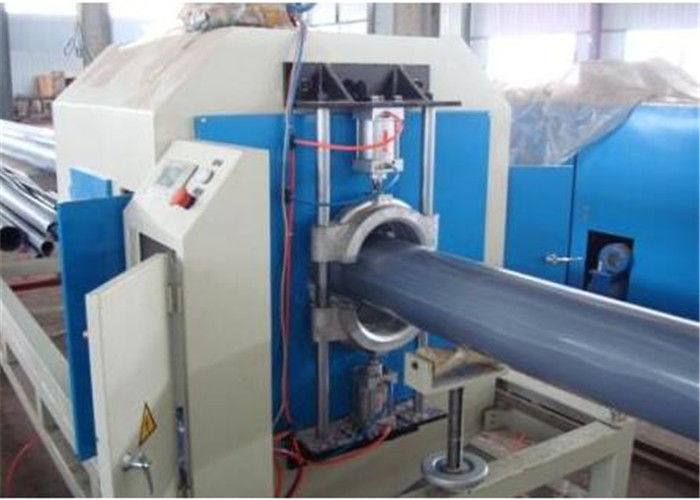

--- Special design of cutter ensure the cutting surface
2. The working process of PVC Twin Pipe Machinery:
Raw material+additive → mixing → screw feeding → conical double screw extruder → mould → vacuum formin table → haul-off unit

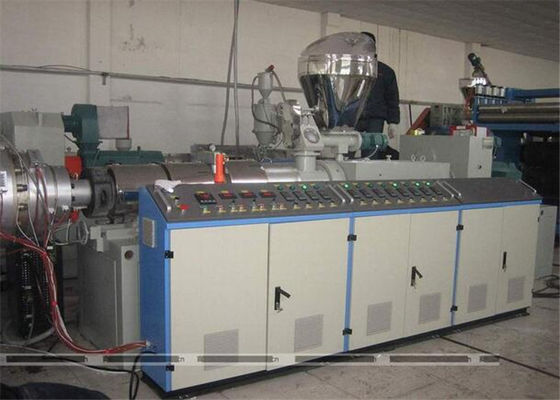

3. PVC double pipe production line is developed for high output of double pipe extrusion together. The main machine is SJSZ51/105 or SJSZ65/132 conical double screw extruder, which is equipped with double-tube single-control stainless steel spraying shaper to form a production line.
4. It avoids a waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cutting are combined with the front shaping technology to make operation more flexible. Let you enjoy economic benefit which is brought about by separately control double-tube extruding. The diameter of the extruded pipe is from 16-63mm. It can fully use the extruding capacity of the extruder.
Main Technical Parameter
| Main extruder | SJSZ-51/105 | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 |
| Main motor power(KW) | 22 | 37 | 55 | 110 |
| Pipe diameter(mm) | 16-63mm | 75-160mm | 200-400 | 400-630 |
| Hauling speed(m/min) | 0.8-10 | 0.5-5 | 0.3-4 | 0.2-3 |
| Max. Capacity(kg/h) | 120 | 260 | 400 | 600 |
| Total power(KW) | 89 | 95 | 135 | 255 |
Application:
Aorui Plastic Machinery Co.,Ltd. manufacture PVC Pipe Extrusion Line and supply OEM, ODM service according to your requirement.Our PVC Pipe Extrusion Line is good in quality and competitive in price,welcome to contact us for more details of PVC Pipe Extrusion Line or realted products.
Our competetive advantages:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
