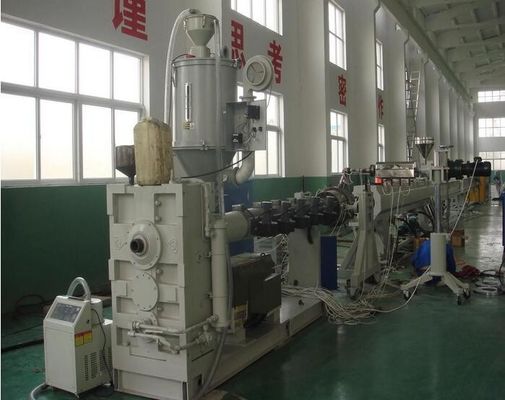

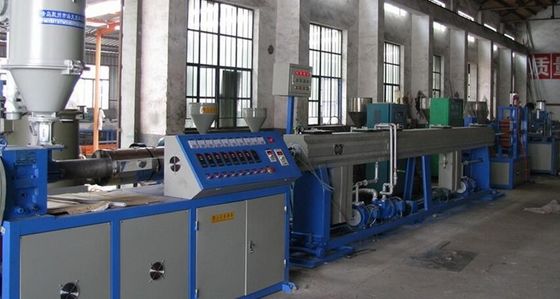

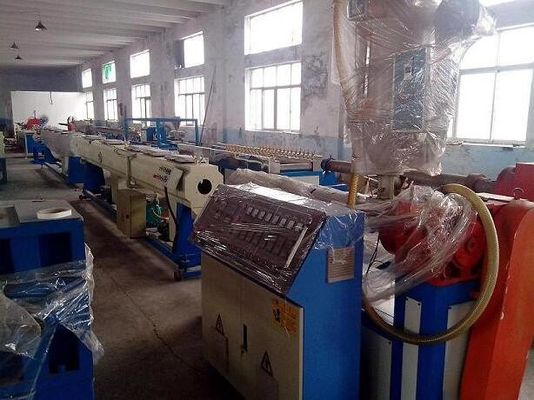

Hot Water PPR PERT Plastic Pipe Production Line With CE ISO9001 Certificate

Hot Water PPR Pipe Extrusion Line , PPR PERT Plastic Pipe Extruder / Machine

Quick detail

1. PP-R Cold/Hot Water Pipe Production Line is mainly used to produce pipes of various diameters and thickness, which are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc.

2.  During the developing history, the PP-R pipe is the latest product, has the advantages of low prices, innocuity, non-corrosion, high temperature resistance and convenient to operate, etc.

Description:

1. This production line is developed by company on the basis of absorbing the international advanced technology, the important parts of screw and die head are specially designed according to the properties of PP-R material. The electrical control uses frequency control, all the main electric parts are imported famous brand products; the total production line has the advantages of high output, stable quality, small deviation of the products, etc.

2. Special single screw extruder for polyolefin , having high extruding velocity and effective plasticization. Separation mixing screw specialized for polyolefin. Specially designed 2-3 co-extruding die ,reasonable channel , smooth outside and inside wall , and little internal stress.

3. Process flow

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack

Main Technical Parameters

Application:

PPR pipe making machine/ pe pipe extrusion line/pe pipe production line/ plastic pe pipe
(16-1600mm plastic hdpe pe pipe extruder machines extrusion line production line making machine)

Why choose us:

experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology

Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.

After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
