Product Details:
|
| Brand Name: | Aorui | Raw Material: | PPR |
|---|---|---|---|
| Screw Number: | SJ65/33 | Application: | PPR Pipe |
| Certificate: | CE ISO9001 | Screw&Barrel Material: | 38Cr MOAIA |
| Type Of Extruder: | Single Screw | Place Of Original: | Shandong , China |
| High Light: | Plastic Extruding Machine,Plastic Extruder Machine |
||

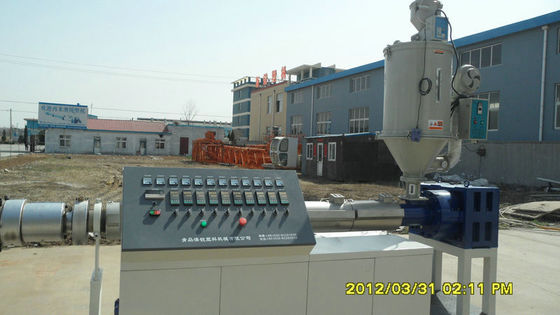

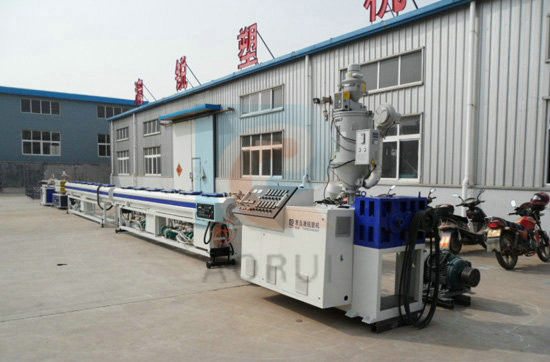

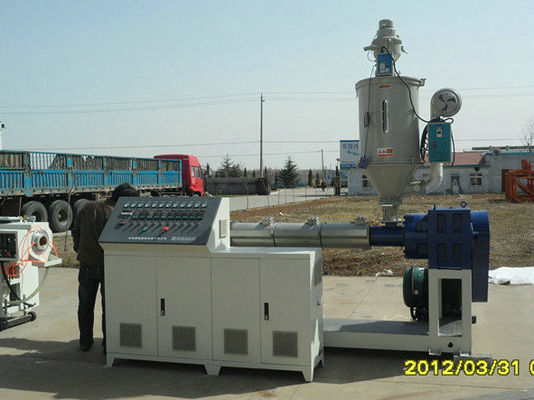

Hot Cold Water Pipe Extrusion Line , PPR Pipe Extrusion Machines For water supply
Quick detail
1. Our company applies the latest oversea technology, fully display the technical superiority of the screw. The production has the features of high output, good plasticity, higher pipe pressure resistance etc. the entire extrusion line realize automatic control from the material feeding to pipe stacking. With the installation of the encoder and the PLC, the non-dust cutter could realize accurate setting length cutting. To insure the stability during high speed production, we adopt advanced basket-type die head.
Product Application of hdpe pp/ppr extrusion line:
1. Vacuum feeding
2. Hopper dryer
3. Single screw extruder
4. Color string extruder
5. Co-extrusion mould
6. Calibrator
7. Spray vacuum calibration tank
8. Spray cooling water tank
9. Haul-off machine
10. No dust cutter
11. Pipe Stacker for package
Description:
1. PPR pipe extrusion machine is mainly used to produce PP-R pipes, which are widely used in drinking water pipe system, which is adopted by many developed countries nowadays as new type product, which is sanitary, nontoxic, and environmentally friendly. It also owns advantages for heat resistance, pressure resistance, energy saving, and long service life.
2. Processing flow of PPR pipe production line:
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul-off machine → cutting machine → discharging
Main Technical Parameters
|
Model
|
Pipe spec(mm)
|
Conical twin screw extruder
|
Max.output
(kg/h)
|
Total power(kw)
|
|
GWG63-PP
|
Φ20-Φ63
|
GW65/38
|
250-300
|
75/90
|
|
GWG110-PP
|
Φ63-Φ110
|
GW65/38
|
250-300
|
90
|
|
GWG250-PP
|
Φ75-Φ250
|
GW75/38
|
500-550
|
185
|
|
GWG450-PP
|
Φ160-Φ450
|
GW90/38
|
700-750
|
250
|
|
GWG630-PP
|
Φ315-Φ630
|
GW120/33
|
900-1100
|
280
|
|
GWG800-PP
|
Φ400-Φ800
|
GW150/33
|
1000-1200
|
315
|
|
GWG1000-PP
|
Φ630-Φ1000
|
GW150/33
|
1000-1200
|
315
|
|
GWG1200-PP
|
Φ800-Φ1200
|
GW120/33 &GW90/38
|
1500-1700
|
280/220
|
Applications of PPR, PE-RT pipes:
PPR, PE-RT plastic pipes is the key promotion environment friendly product of national ministry of construction. It has the merit of non-toxic, rustless, non-filthily, thermo stable, heat preservation, convenient installation, reasonable price and so on. It has been widely applied in the housing cold & hot water pipe.
Our competitive advantages:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
