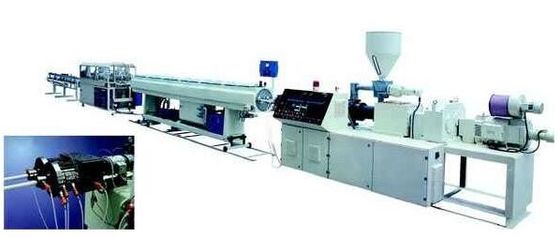

Two Screw Plastic Extrusion Line , PP PE Twin Pipe Extruder With Siemens Motor

Two Screw Plastic Extrusion Line , PP PE Twin Pipe Extruder With Siemens Motor
Two Screw Plastic Extrusion Line , PP PE Twin Pipe Extruder With Siemens Motor Two Screw Plastic Extrusion Line , PP PE Twin Pipe Extruder With Siemens Motor Two Screw Plastic Extrusion Line , PP PE Twin Pipe Extruder With Siemens Motor

Large Image :  Two Screw Plastic Extrusion Line , PP PE Twin Pipe Extruder With Siemens Motor

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZS51/105
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

Two Screw Plastic Extrusion Line , PP PE Twin Pipe Extruder With Siemens Motor

Description
Condition: New Certificate: CE ISO9001
Screw Number: Two Temperature Controller: Omron
Port: Qingdao Payment Terms: TT Or L/C
Automatic Grade: Fully Automatic Motor: Siemens
High Light:

plastic extrusion machine

,

plastic production line

PE Pipe Extrusion Line , PE Twin Pipe Extrusion Machine , PP PE Twin Pipe Extruder





Quick detail



1. Flow chart of the PE pipe line



Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder

→ color code extruder → mould and calibrator → vacuum forming machine → cooling tank

→ haul-off machine → cutting machine → discharging rack



2. Single screw extruder
adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.









Description:



1. Change the production line is the GPM company developed a new type of pipe production line for PE , pp jing and other polyolefin pipe extrusion speed , all models with advanced PLC/PCC modular intelligent control system , in order to realize the whole production line automation and real-time data recording and closed-loop control , the production line has some high yield , wide adaptation of raw materials , suatained and stable production of high quality productions such as columns a bit .



2. HDPE pipe making machine/ pe pipe extrusion line/pe pipe production line/ plastic pe pipe (16-1600mm plastic hdpe pe pipe extruder machines extrusion line production line making machine)





Main Technical Parameters



Model
Pipe spec(mm)
Conical twin screw extruder
Max.output
(kg/h)
Total power(kw)
GWG63-PE
Φ20-Φ63
GW65/38
250-300
75/90
GWG110-PE
Φ63-Φ110
GW65/38
250-300
90
GWG250-PE
Φ75-Φ250
GW75/38
500-550
185
GWG450-PVC
Φ160-Φ450
GW90/38
700-750
250
GWG630-PVC
Φ315-Φ630
GW120/33
900-1100
280
GWG800-PVC
Φ400-Φ800
GW150/33
1000-1200
315
GWG1000-PVC
Φ630-Φ1000
GW150/33
1000-1200
315
GWG1200-PE
Φ800-Φ1200
GW120/33 &GW90/38
1500-1700
280/220









Applications of PPR, PE pipes:


HDPE series plastic pipe extrusion line is mainly used in the area of agricultural water supply, architectural water supply, gas supply and transportation, telecommunication cables etc. This line has the advantages of easy operation, high automatic degree, stable and reliable production, well received by customers.







Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
