Large Diameter PE Water Drainage Pipe Plastic Extrusion Machine 45KW / 100KW

Large Diameter PE Water Drainage Pipe Plastic Extrusion Machine 45KW / 100KW

Brand Name: AORUI
Model Number: SJ90/33
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Detail Information
Place of Origin:
ShanDong China
Certification:
CE UL CSA
Frequency Control:
ABB
Automatic Grade:
Fully Automatic
Warranty:
12 Months
After-sales Service:
Engineers Availiable To Service
Motor:
Siemens
Capacity:
30 Days
Model Number:
SJ65/33
Trade Mark:
Aorui
Packaging Details:
Fumigationwood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 sets per month
Highlight:

Plastic Extruding Machine

,

Plastic Extruder Machine

Product Description

High Quality PE Pipe Extrusion Making Machine , PE Water Pipe Extruder Machine


Quick detail:

1. This PE Drainage Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb. Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.

2. Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/hDiameter: from 16 to 800mmAdopts reasonable design, absorbing safe producing technology, acquiring CE&ISO certificate



Description:

1. Flow chart of the PE pipe line

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder

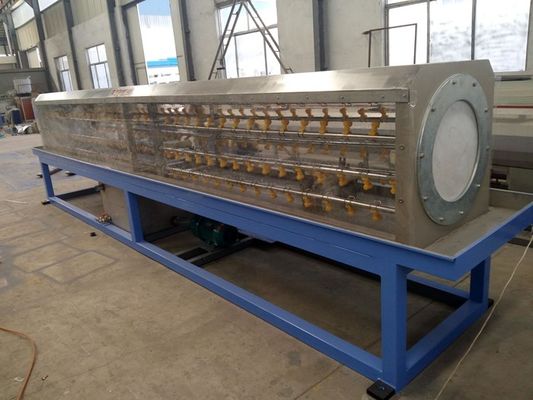

→ color code extruder → mould and calibrator → vacuum forming machine → cooling tank
→ haul-off machine → cutting machine → discharging rack

2. PE-RT,PP-R, PP, PB, PVDF, PA, ABA, PEXB, TPU polyolefine pipe high-speed & high-efficiency extrusion line is developed based on the years of experience of design & assembly and imported advanced technique & process. Starting with extruder, all the automatic machines and downstream equipments are wholly automatically controlled during the entire progress from charging to discharging.




Main Technical Parameters


Model Pipe diameter mmExtruder Max. output (kg/h)Total installed power (KW)Lenght of production line(m)
PE-32Φ4-32SJ-45/30 30-1204528
PE-63Φ20-63SJ-60/33 120-22010036
PE-110Φ20-110SJ-65/33 150-25012039
PE-160Φ63-160SJ-65/33 120-27015043
PE-250Φ75-250SJ-75/33 280-40023045
PE-450Φ110-450SJ-90/33 450-60035065
PE-630Φ315-630SJ-120/33 700-95055075
PE-800Φ400-800SJ-150/33 800-120070075




About Our Company:

Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
