Product Details:
|
| Brand Name: | Aorui | Power: | 37kw |
|---|---|---|---|
| Type Of Extruder: | Twin Screw Extruder | Voltage: | 380V 50HZ |
| Screw&Barrel Material: | 38Cr MOAIA | Warranty: | 12 Months |
| Place Of Original: | Shandong , China | ||
| High Light: | plastic extruder machine,plastic extrusion machine |
||

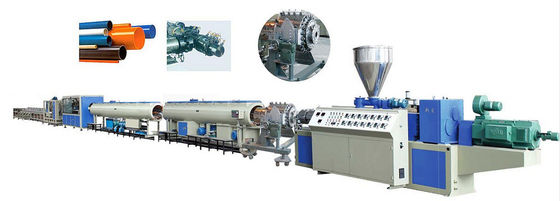

High Output PVC Pipe Making Machine , CE Certification Plastic Pipe PVC Pipe Production Line
Quick detail
1. Details of PVC drainage pipe plastic extruding making machinery

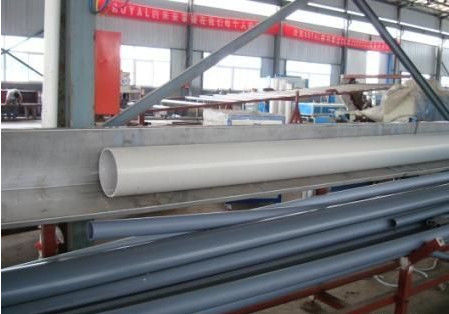

The machine is used to produce PVC drainage pipe, PVC rigid pipe, PVC electrician wiring casing pipe etc;
Applied materials: PVC powder;
2. This PVC pipe extrusion line is mainly used to produce agricultural water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc.
Sepecification:
1. This unit adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
2. This machine mainly include Automatic spring feeding machine , Conical tein screw extruder , Die head , Vacuum calibrating tank , Vacuum spraying cooling tank, haul-off machine, cutting machine , Stacker. Auxiliary machine: High speed mxing machine , Plastic crusher , Plastic milling machine , PVC Pipe belling machine , Printing machine.
3. AC motor, ABB frequency speed governor, Japanese RKC temperature controller, Schneider contactor.
Screw Nitriding treatment, hardness HV740-940, surface roughness Ra≤ 0.8um. Barrel air-cooled cooling method, nitriding depth of 0.5- 0.7mm, hardness of HV860 or more, the surface roughness Ra ≤ 1.6um.

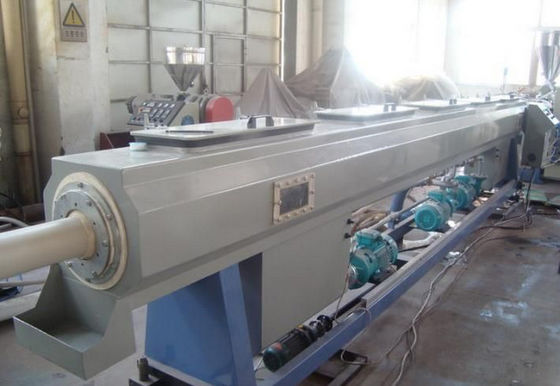

Die head material, High quality steel by quenching and tempering. Structure, Where contact with the materials hard chrome plating. Bolts level, 12.9 high strength bolts. Two Vacuum calibration tank material: Stainless steel. Double Caterpillar adjusting method: Pneumatic compress device. Double cutter: Most cutting times, 20 times/min; With strong waste clean device. Equipped with a meter installation, meter size is accurate.
Technical Parameters:
| Model | Diameter range | Extruder model | Max capacity | Installed power |
| LPCG63 | 16-63mm | SJSZ-51/105 | 120kg/h | 45kg/h |
| LPCG160 | 75-200mm | SJSZ-65/132 | 260kg/h | 80kg/h |
| LPCG400 | 200-400mm | SJSZ-80/156 | 400kg/h | 115kg/h |
| LPCG630 | 400-630mm | SJSZ-92/188 | 650kg/h | 200kg/h |
Application:
This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building.
Technical and after - sales service:
