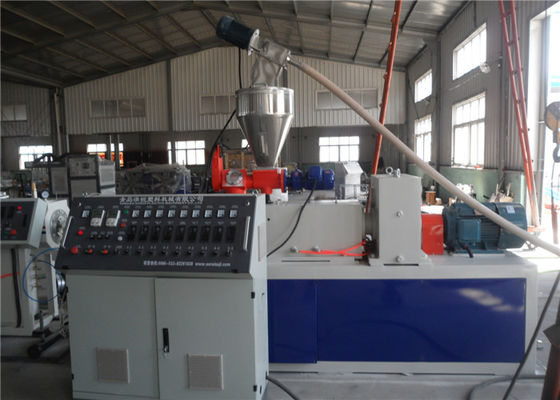

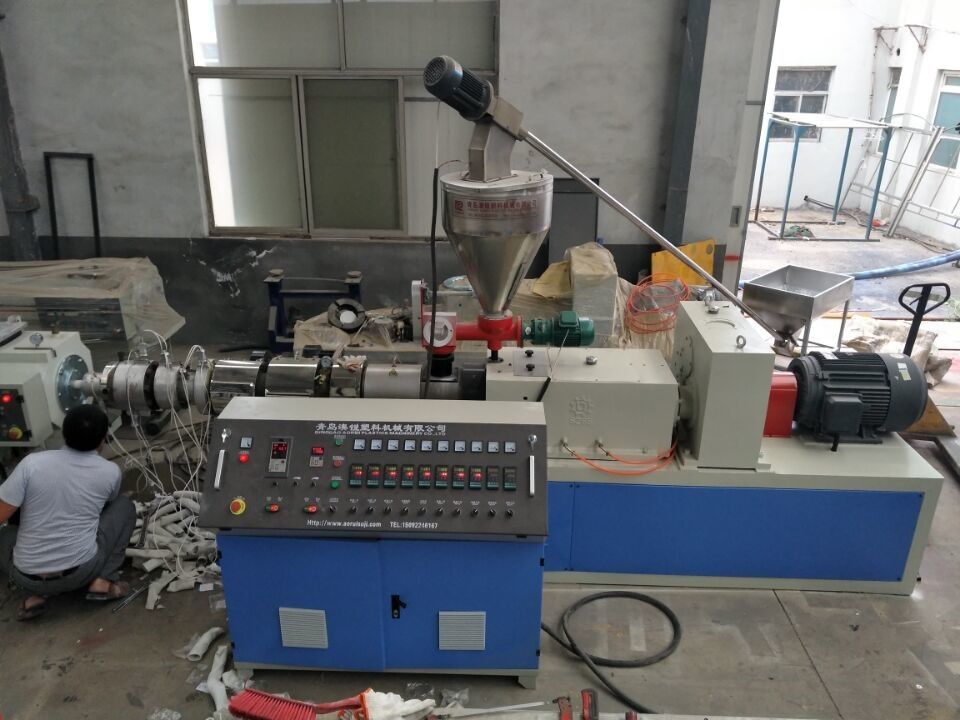

Vertical Gearbox 150kg/H Pvc Wpc Twin Screw Extruder

Name: Vertical Gearbox 150kg/H Pvc Wpc Twin Screw Extruder
Brand: QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1
SKU: SJSZ51X105
Availability: InStock

Brand Name:	AORUI
Model Number:	SJSZ51X105
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE & ISO9001

Brand Name:

Aorui

Place Of Original:

China

Condition:

New

Voltage:

380V 50HZ

Plastic Processed:

PVC WPC

Warranty Time:

1 Year

Motor Power:

22 Kw

Model Number:

SJSZ51X105

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quarter

Highlight:

Wpc Twin Screw Extruder

150kg/H Twin Screw Extruder

Vertical Gearbox Twin Screw Extruder

Product Description

120-150kg Per Hour SJSZ51X105 PVC WPC Twin Screw Extruder With Vertical Gearbox

Quick detail

1.Optimized design and delicately made screw and barrel results in excellent plasticity.

2.Advanced electric control system, subsection faliure alert, easily for trouble-shooting.

3.High-performance distribution system for torque develaration enhanced the durability and easy for maintenance.

4.Highly efficient and super noise-free ventilatorsensure quirtly operating of equipment.

5.Perfect and accurate temperature control system ensures steady output.

Description:

1.SJSZ Conical Twin Screw Extruder is developed and manufactured by our company with even plasticity, steady quality, high production, wide application and durability.

2.This model of machine can be used to produce pipe, panels and profiles directly from pvc powder.

3. There are two types of controlling system. One is common type with temperature controllers and the other is PLC system with computer and modules. DC and AC speed regulating methods for friven system are available at buyer's option.

Main Technical Parameter

Model	SJSZ51X105	SJSZ65X132	SJSZ80X156	SJSZ92X188
Power of motor	22kw	37kw	55kw	110kw
Number of screw	2	2	2	2
Torsional moment of screw(N.m)	7000	10000	14000	32000
Screw diameter	51/105	65/132	80/156	92/188
Capacity(kg/h) pvc powder	150	300	400	750

Application:

Conical twin screw extruder can be widely used for different PVC plastic products extrusion. Combined use with different plastic auxiliary machines, it can be used for the PVC pipe, PVC profile, PVC board, PVC sheets and PVC pelletizing.special designed conical twin screws designed, which is perfectly good for the PVC extruding.

Our competetive advantages:

1. Easy to operate

2. Run stable

3. PLC control
