Product Details:
|
| Model Number: | SJSZ80/156 | Power: | 55kw |
|---|---|---|---|
| Type Of Extruder: | Twin Screw Extruder | Voltage: | 380V 50HZ |
| Screw&Barrel Material: | 38Cr MOAIA | Delivery Time: | 35 Days |
| Warranty: | 1 Year | Place Of Original: | Shandong , China |
| High Light: | wpc pvc foam board machine,wpc board production line |
||
WPC Foam Board Machine / PVC WPC Doam Board Making Machine / Plastic Board Production Line
Quick detail:
1. WPC wood plastic composite celuka/crust/skinning/foam board production line
WPC wood plastic composite celuka/crust/skinning/foam board production line for production of 1220mm PVC & WPC free/celuka/crust/ skinning/foam board and sheet, Providing complete turnkey project solution, include plant layout and design, formula, production support etc;PVC celuka/crust/skinning/foam board extruder

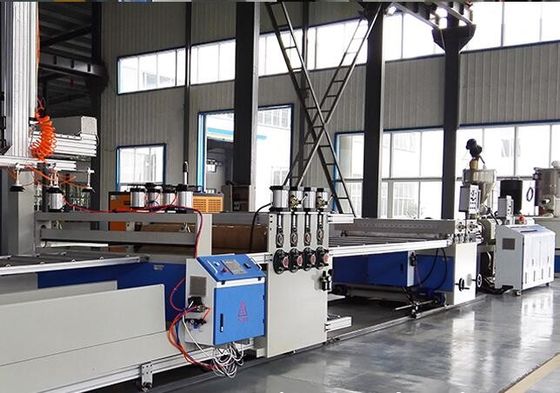

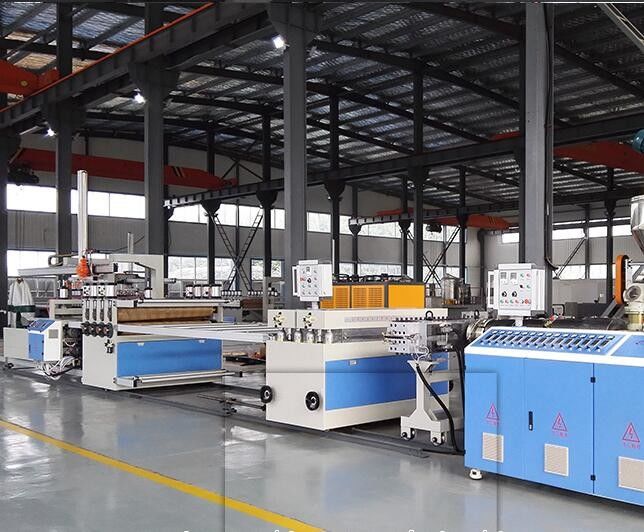

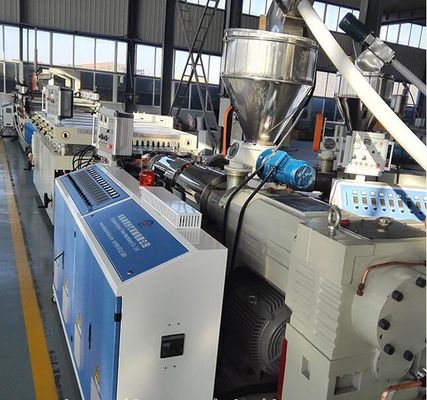

2. The unit consists of Feeder-Conical (Parallel) double screw extruder-Complete set of extrusion die, calibrator for free/celuka/crust/skinning/foam board and sheet-Vacuum calibration table-Roller haul off-cutting sytem-Stacker
Producing final product width:1220mm
Producing final product thickness:5-25mm
Description:

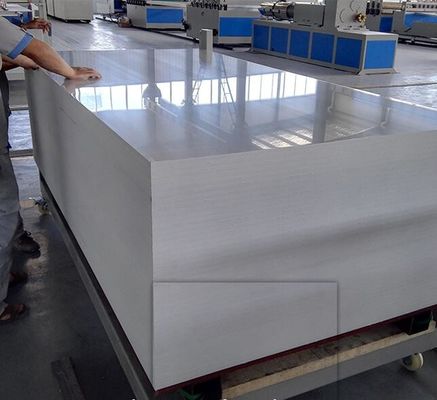

1. Pvc furniture board is pvc crust foam board or Celuka foam board. Smooth, light weight , high density, high hardness , moisture-proof and waterproof , mildew proof and anti-corrosion , non-toxic and no benzene , green products , not easy to deformation resistance to compression.
2. PVC furniture board (Chevron board or Andy board PVC high, hardness white crust foaming board ) household decoration: bathroom cabinet board, furniture board, household decoration board, all kinds of household of the shelf.
3. Production Line Process flow
Plastic raw material and additive → mixing → spring feeding → single screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker
Specifications:
|
Model
|
SJSZ-51
|
SJSZ-55
|
SJSZ-65
|
SJSZ-80
|
SJSZ-92
|
|
Screw dia.(mm)
|
51/105
|
55/110
|
65/132
|
80/156
|
92/188
|
|
Max speed(rmp)
|
40
|
38
|
38
|
37
|
36
|
|
Main motor(kw)
|
18.5
|
22
|
37
|
55
|
90
|
|
Capacity(kg/h)
|
80~100
|
100~150
|
150~250
|
250~380
|
380~700
|
|
Center height(mm)
|
1050
|
1050
|
1050
|
1050
|
1100
|
|
Net weight(kg)
|
3000
|
3500
|
4000
|
5500
|
8000
|
|
L*W*H(m)
|
3.6x1.1x2.1
|
3.6x1.1x2.1
|
4.2x1.5x2.4
|
4.7x1.5x2.4
|
6x1.6x2.5
|
Competitive Advantage:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
