Product Details:
|
| Condition: | New | Warranty Time: | 1 Year |
|---|---|---|---|
| Power: | 55 Kw | Type Of Extruder: | Twin Screw Extruder |
| Voltage: | 380V 50HZ | Screw&Barrel Material: | 38Cr MOAIA |
| Delivery Time: | 30 Days | Automatic Grade: | Fully Automatic |
| High Light: | wpc pvc foam board machine,wpc board production line |
||
PVC WPC Plastic Foam Board Sheet Machinery , WPC Celuka Board Production Line , Foam Board Extruder
Quick detail:
Features:
1, Light weight,good tenacity, high rigidity
2, Fireproof and flame retardant
3, Good insulation
4, No sopping, no deformation
5, Easily to processed
6, Good plasticity, being an excellent thermoform material
7, Sub-light surface and elegant vision
8, Anti-chemical corrosion
9, Suitable to silk screen printing
10,With imported dyes, unfading and anti-aging
Description:
1. PVC foaming board and WPC foaming board application:
l Transportation industry: Ship, plane. bus, chamber of train, roofing, core layer, inner decoration board.
l Construction and decoration industry: outer wall board, inner decoration board, housing, office, public construction board, furniture, cupboard, roofing. Adopting printing, film coating and thermo-embossing equipment, will get all kinds of emulational wooden product.

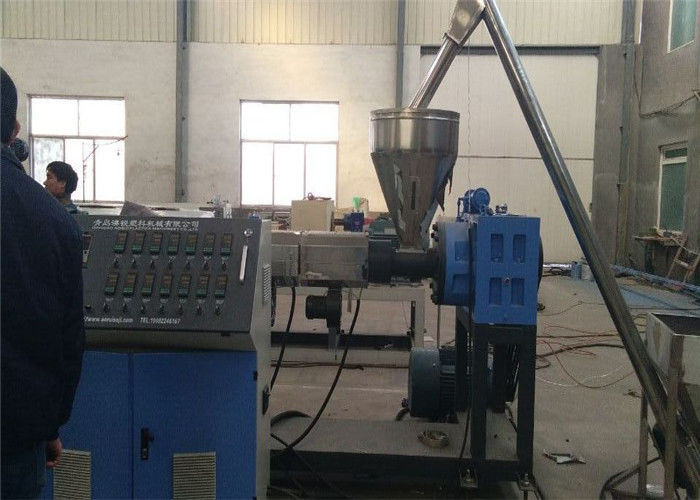

The extruder for this line is the special designed SJZ 92 conical twin-screw extruder, this extruder is equipped with the temperature controlling meters in high precision temperature controlling, easy and comfortable operation.
2. The vacuum forming table is equipped with the heavy cooling system which it ensures the cooling efficiency. Caterpillar tractor is equipped the precise speed geared motor and inverter which it is reasonable structure, powerful and stable for pulling. The cutter is reliable and accurate to cut high efficiently. The stacker has the movable stacking trolley and special made rubber protection layer to prevent the product from scratching.
Specifications:
|
Model
|
SJSZ-51
|
SJSZ-55
|
SJSZ-65
|
SJSZ-80
|
SJSZ-92
|
|
Screw dia.(mm)
|
51/105
|
55/110
|
65/132
|
80/156
|
92/188
|
|
Max speed(rmp)
|
40
|
38
|
38
|
37
|
36
|
|
Main motor(kw)
|
18.5
|
22
|
37
|
55
|
90
|
|
Capacity(kg/h)
|
80~100
|
100~150
|
150~250
|
250~380
|
380~700
|
|
Center height(mm)
|
1050
|
1050
|
1050
|
1050
|
1100
|
|
Net weight(kg)
|
3000
|
3500
|
4000
|
5500
|
8000
|
|
L*W*H(m)
|
3.6x1.1x2.1
|
3.6x1.1x2.1
|
4.2x1.5x2.4
|
4.7x1.5x2.4
|
6x1.6x2.5
|
Competitive Advantage:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time.
