Twin Screw PVC Foam Board Machine WPC Board Manufacturing Machine

Brand Name:	AORUI
Model Number:	SJSZ80X156
MOQ:	One Set
Price:	Negotiation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, UL, CSA, ISO9001

Condition:

New

Screw Design:

Double Screw

Screw Material:

38Cor Moaia

Brand Name:

Aorui

After-sales Service:

Engineer Availiable To Service

Plastic Processed:

PVC WPC

Place Of Original:

China

Warranty Time:

1 Year

Voltage:

380V 50HZ

Certificate:

CE Certificate

Packaging Details:

Fumigation wood,film, pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets Per Month

Highlight:

Twin Screw PVC Foam Board Machine

380V WPC Board Manufacturing Machine

Thick 30mm WPC Board Manufacturing Machine

Product Description

PVC Foam Board Machine , PVC WPC Board Manufacturing Machine, Twin Screw Extruder Foam Board Machine

Quick Detail:

1. Machine list:

1	SJSZ-80/156 conical twin screws extruder	one set
2	PVC foam board extrusion mould (thickness=10~18mm)	one set
3	Temperature controller of mould	one set
4	Three rollers cylinder M/C	one set
5	Cooling roller way	one set
6	Haul off unit	one set
7	Longitudinal direction cutting m/c	one set
8	Horizontal direction cutting m/c	one set
9	Stacking tray	one set
10	Automatic loading material	one set

2. Work flow

PVC powder +additive → mixer →SJSZ series extruder →Coat-hanger type mould →Vacuum calibration cooling platform →cooling rollers and edge-cutting device →Haul off →stacker

Description of PVC Foam Board Production Line:

1. SJS80/156 Twin Screw Extruder

Machine Electrical part:ABB inverter,Siemens Motor,Schneider Contactor,,Electrical wire is CE export standard Motor 75kw SIEMENS ;

Screw& Barrel : Zhoushan
Control system : Siemens Screen touch control or RKC or OMRON table control.

2. Mould
Size :1320mm 1350mm 1100mm 1000mm ; Finished size :1220mm ;Thcikness :3-25mm, 3-30mm,3-40mm

3. Vacuum Calibration platform

Max. calibrating width: 1450mm ; Calibrating table length:2000mm; Vacuum pump power:5.5kw*2 units ;

Max. exhausting volume:80m3/min ; Water pump power:4kw

4. Eight Pairs Rubber Rollers Traction Machine With Trimming Unit And Dust Collector

Max. pulling width:1450mm ; Max pulling thickness:20mm
Pair roller qty: 8 pairs ; Driven motor power:5.5kw

5. Cutter Unit

Rack type synchronize pressing unit
Special design flat cutting motor: 3kW ; With non-pole cylinder left and right moving system
Cutter motor brand:Siemens ; Cut thickness :3-40mm

Technical Parameter:

Model	Extruder	Width	Thickness	Capcity
TPM-915	SISZ80/156	915mm	<30mm	300kg
TPM-1220	SISZ80/156	1220mm	<30mm	350kg
TPM-1560	SJSZ92/188	1560mm	<30mm	450-500kg
TPM-1830	SJSZ92/188	1830mm	<30mm	500-600kg

Application of pvc foam board machine:

PP Board: chemistry industry, food industry, anti-erosion industry, environmentally-friendly requipments industry, ect.
PE Board: Chemical and electric power industries, HDPE board, known as engineering plastics, is used in mechanial and chemical requipments as well as ice hockey ring walls.
PVC Board: Rigid pvc board is widely used in chemical industry, petrol, electroplating,water purfying equipment, envrionmen-friendly equipments. lamp house and advertisements, etc.

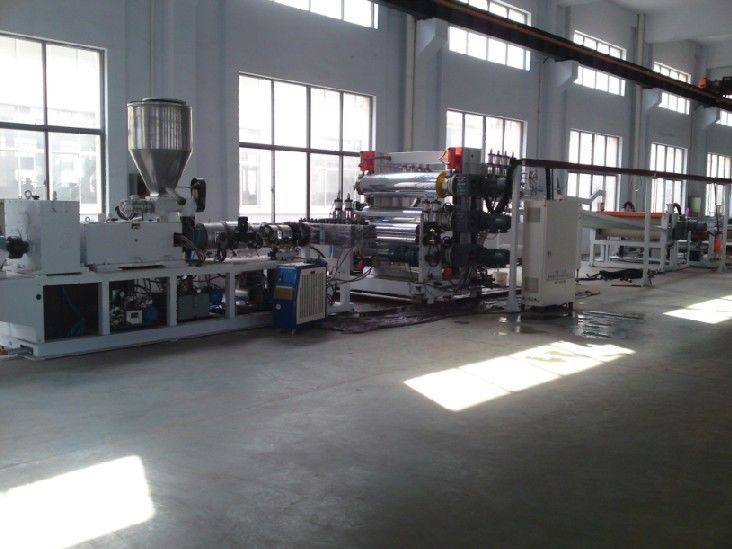

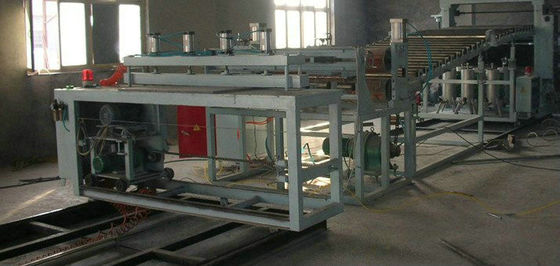

Machine display:
