350KG/H WPC Board Making Machine High Density PVC Foam Board Production Line

Brand Name:	AORUI
Model Number:	SJSZ80X156
MOQ:	One Set
Price:	Negotiation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, UL, CSA, ISO9001

Brand Name:

Aorui

Certificate:

CE Certificate

Voltage:

380V 50HZ

Warranty Time:

1 Year

Place Of Original:

China

After-sales Service:

Engineer Availiable To Service

Screw Material:

38Cr Moaia

Screw Design:

Double Screw

Condition:

New

Plastic Processed:

PVC WPC

Packaging Details:

Fumigation wood,film, pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets Per Month

Highlight:

350KG/H WPC Board Making Machine

High Density PVC Foam Board Machine

PLC PVC Foam Board Machine

Product Description

PVC Foam Board Machine , PVC WPC Board Manufacturing Machine, Twin Screw Extruder Foam Board Machine

Quick Detail:

1.The PVC foam board extrusion line, PVC furniture board machine, PVC bathroom and kitchen cabinet board machine include: main extruder, co-extruder, distributor, calibrator mould, cooling rack, haul off, cutter and stacker.

2.Characteristics of pvc foam board:

PVC foam board is a less dense form of traditional PVC, or polyvinyl chloride. It retains many of the same qualities as traditional PVC such as an outstanding strength-to-weight ratio, great flame-resistance, and excellent chemical resistance. However, because of its lower density, PVC foam board is significantly lighter; making it perfect for a wide variety of applications.

Description of PVC Foam Board Making Machine:

Machine Name	Information
SJ80/156 Double Screw Extruder or SJ92/188 Double Screw Extruder	Function: make WPC PVC foam board, PVC foam board kitchen Capacity: 300-350 KG per hour
Die and calibration mold	Function: extrusion and molding the products Using high-quality and durabel raw materials, Product size: 1220 mm * 2440 mm (3 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, etc.)
Water Cooling Table	Function: rapid shaping of plasticized profiles, the water can be recycled
Hauling Off	Function: Pull the board to increase the output of PVC foam board Use high-quality rubber blocks without hurting the foam board
Cutter	Function: According to customers needed length,cutting the PVC foam board There is a PLC control,it can set 7 datas
Auxiliary Machine
Mixing Unit	Function: Mixing calcuim carbonate, PVC resin, cazn stabilizer, foam agent, stearic acid etc.
Crusher	Function: crush the waste roof tile and recycled PVC board,such as PVC window door profile, pipe, wall cladding, profile etc.
Puliverizer	Function: Grind the PVC profiles to powder.
Lamination and hot stamping machine	Function: laminate the PVC film on the surface of board, Make the surface more beautiful. The pattern can according to customers.

Technical Parameter:

Extruder	80/156	80/173	92/188
Capacity	350kgsh	550kgs h	650kgs h
Size of board	1220mm	1220mm	1220mm
Thickness	3-25mm	3-30mm	3-30mm

Application of pvc foam board machine:

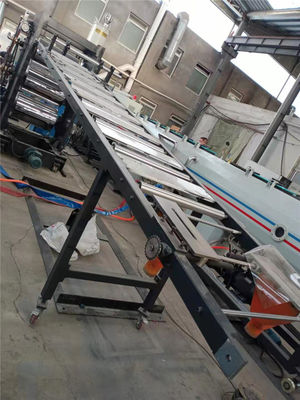

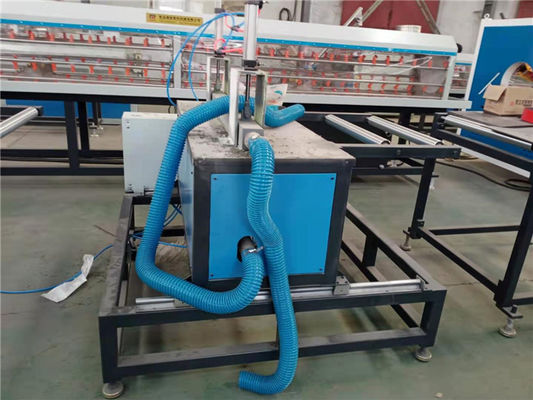

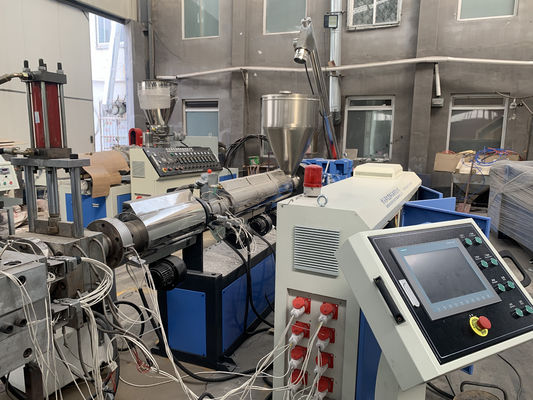

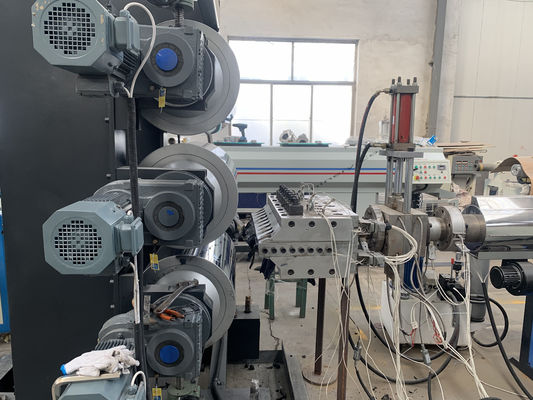

Machine display:
