500KG/H PVC Foam Board Machine 3mm PVC Sheet Extrusion Machine

500KG/H PVC Foam Board Machine 3mm PVC Sheet Extrusion Machine
500KG/H PVC Foam Board Machine 3mm PVC Sheet Extrusion Machine 500KG/H PVC Foam Board Machine 3mm PVC Sheet Extrusion Machine 500KG/H PVC Foam Board Machine 3mm PVC Sheet Extrusion Machine 500KG/H PVC Foam Board Machine 3mm PVC Sheet Extrusion Machine

Large Image :  500KG/H PVC Foam Board Machine 3mm PVC Sheet Extrusion Machine

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE, UL, CSA, ISO9001
Model Number: SJSZ80X156
Payment & Shipping Terms:
Minimum Order Quantity: One Set
Price: Negotiation
Packaging Details: Fumigation wood,film, pallet,etc or according to customer’s requirement.
Delivery Time: 30 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 Sets Per Month

500KG/H PVC Foam Board Machine 3mm PVC Sheet Extrusion Machine

Description
Model Number: SJSZ80X156 Screw Design: Double Screw
Automatic Grade: Fully Automatic Product Name: PVC Sheet, Pvc Foam Board
PVC Board Size: 1220*2440mm Certificate: CE Certificate
Place Of Original: China PVC Board Thickness: 3-30mm
Motor Brand: Siemens Beide Screw Material: 38Cor Moaia
High Light:

500KG/H PVC Foam Board Machine

,

3mm PVC Sheet Extrusion Machine

,

Double Screw PVC Sheet Extrusion Machine

PVC Foam Board Production Line , High Density PVC Board Making Machine , Sheet Extrusion Machine


Description of pvc foam board machine:

1. PVC Foam Board Machine adopts Celuka foam technology, which can produce a kind of PVC foam boards with superior quality. These processes result in a "skinning" or outer layer of foam board, thus has smooth and shining surface with characteristics of lightweight, scratch-resistant, durable, water and weather resistant, anti-corrosion, impervious to salts, insects and many chemicals including some acids.

2. Our PVC/WPC foam board machine includes the special twin-screw extruder,mould and other auxiliary machine.We use twin-screw extruder with compact structure,superior performance.And use teh high-performance alloy steel for professional processing .So the machine has the advantages of uniform plasticizing, stable extrusion,high output,and long life.We can supply you the best material formulation and all of technology.



Technical Parameter:
Machine Name
Function
SJ80/156 Double Screw Extruder
or SJ92/188 Double Screw Extruder
Function: make WPC PVC foam board, PVC foam board kitchen
Capacity: 300-350 KG per hour, 500 - 600 KG per hour

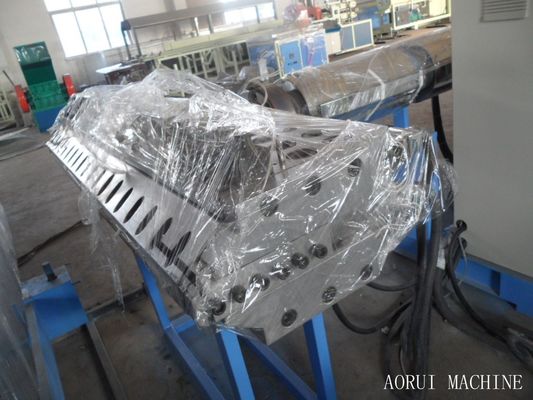

Die and calibration mold
Function: extrusion and molding the products
Using high-quality and durabel raw materials,
Product size: 1220 mm * 2440 mm (3 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, etc.)
Water Cooling Table
Function: rapid shaping of plasticized profiles, the water can be recycled
Hauling Off
Function: Pull the board to increase the output of PVC foam board
Use high-quality rubber blocks without hurting the foam board
Cutter
Function: According to customers needed length,cutting the PVC foam board
There is a PLC control,it can set 7 datas
Auxiliary Machine

Mixing Unit
Function: Mixing calcuim carbonate, PVC resin, cazn stabilizer, foam agent, stearic acid etc.
Crusher
Function: crush the waste roof tile and recycled PVC board,such as PVC window door profile, pipe, wall cladding, profile etc.
Puliverizer
Function: Grind the PVC profiles to powder.
Lamination and hot stamping machine
Function: laminate the PVC film on the surface of board, Make the surface more beautiful.
The pattern can according to customers.



Application:

1. PVC foam board,also known as Chevron board and Andy board, having two types: crust foaming and free foaming.

2. WPC foam board is widely used in passenger car, train car roof, box core layer, interior decoration board, building exterior wall board, interior decoration board, office, residential, public building partition, commercial decoration frame, dust room boards, ceiling boards, screen printing, computer lettering, advertising signs, exhibition boards, sign boards, photo album boards and other industries and chemical anti-corrosion engineering, cold storage boards, special cold insulation engineering, environmental protection molds, sports equipment, breeding materials, seaside moisture-proof facilities, water-resistant materials, art materials and various lightweight partitions instead of glass ceilings.

3. It has a wide range of uses and is increasingly popular with the public due to its relatively low price and superior performance.

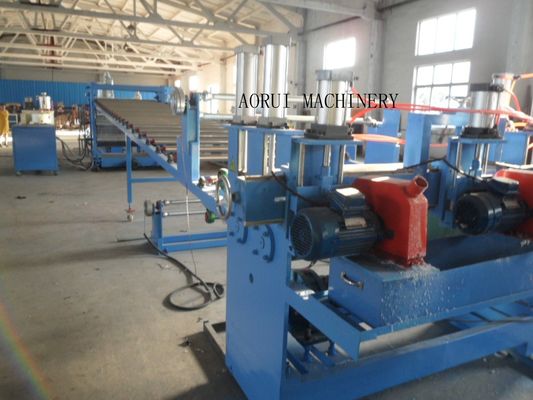

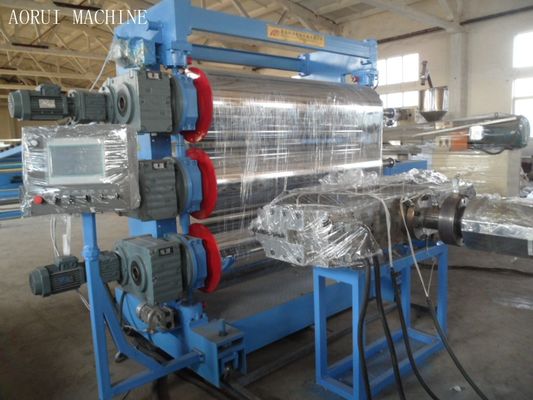

Machine display:

500KG/H PVC Foam Board Machine 3mm PVC Sheet Extrusion Machine 0



500KG/H PVC Foam Board Machine 3mm PVC Sheet Extrusion Machine 1
