| Brand Name: | AORUI |
| Model Number: | SJ65 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10 sets per month |

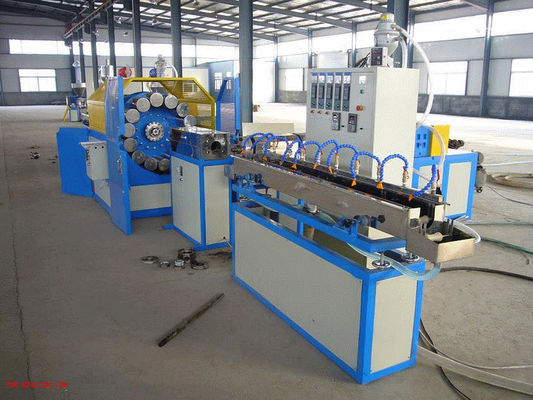

Steel Wire Reinforced PVC Pipe Plastic Extrusion Line , Reinforced Pipe Machinery
Quick detail
Pipe material :PVC
Pipe range: 100-150mm
Product pipe : pipe
Condition : new
Product : steel wire reinforcing pipe
Certification : CE UL CSA
Brand: AURUI
Main motor power: 75KW
Capacity: 120-150kg/h
L:D : 28:1
Voltage : 220v/380V
Description:
1. adopt high speed, high efficiency extruder, ensure material plasticizing quality and quantity
2. special design of steel wire winding spring machine ,make the winding spring uniform ,continuous
working time
3. special design of tube head produce the tube high transparency ,steel wire distribute uniformity ,and
the length can be adjust randomly
4. main electric components are imported products,stable and reliable operation
5. all the control press is designed by the integration design ,easily operate and rapid
Specifications:
|
Model |
AS-65 |
AS-75 |
AS-90 |
|
|
Extruder |
|
AS-SJ65/28C |
AS-SJ75/28C |
AS-SJ90/28C |
|
Range of Pipe Dia. |
mm |
25-50 |
32-64 |
38-75 |
|
Installed Capacity |
kw |
33 |
45 |
58 |
|
Average Energy Consumption |
kw |
19.5 |
30.2 |
36.5 |
|
Dimension (L×W×H) (Approx) |
m |
8×3.3×1.5 |
9×4×1.8 |
12×4.5×2 |
|
Total Weight (Approx) |
T |
3.5 |
5 |
6 |
Applications:
It can be widely used in the industries of machinery, coal mine, oil, chemical plant, agricultural irrigation,
building, solar water heater, coal gas pot, etc.
Competitive Advantage:
1.good after-service
2.spare parts are free
3.gurantee:one year or according to customer’s requirement.
4.advanced technology and better quality
