|Condition:||New||Screw Design:||Double Screw|
|Automatic Grade:||Fully Automatic||Raw Material:||Pvc Powder|
|Motor Brand:||Aorui||Place Of Original:||Qingdao City|
Foam Sheet Extruder,

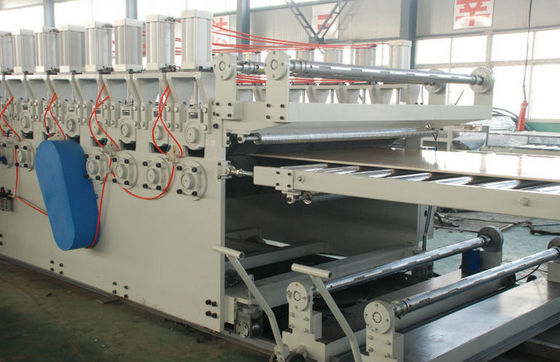

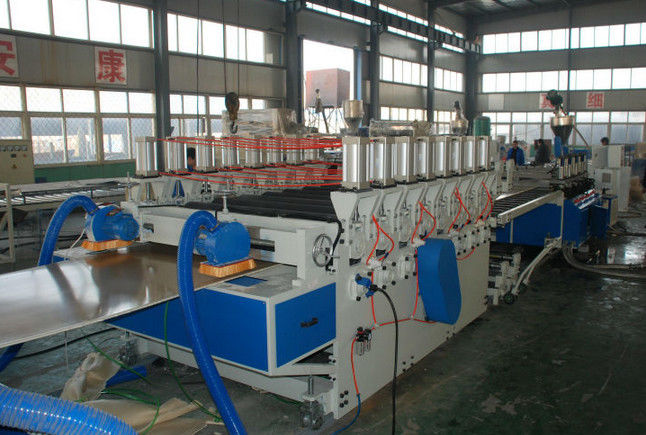

PVC Foam Board Production Line
WPC Sheet Plastic Extrusion Machine , Conical Twin Screw Extruder
1.Process Flow of wood plastic sheet pvc foam board extrusion line finished machine:
Raw material+wood power+additive→mixing → granulating → conical double screw extruder → sheet extrusion mould →
cooling molding die → vacuum calibration tank → belt haul-off → cutter → rack → finished product inspecting&packing
2.In order to enlarge our series of foam board production line, our engineers developed pvc Foam Board Production Line to meet higher requirements in the market. pvc Foam Board Production Line has been changed in many parts, such as 80/156 twin screw extruder and more powerful cooling, hauling-off and cutting machines.
1.WPC foam board is widely used architecture, construction framework/construction panel, house
ornament, furniture making, advertising, net-screen, art-ware etc field.
2.The WPC products are popularly used as the building board, partition wall aboard, plank on storage rack
and furniture board, etc.
3.The extruded product with this tooling has the advantages of plastic profile and the qualities of wood,
such as good hardness, good rigidity, long service life, and good machine ability. The end product is
resistant to the weather and is environmentally safe. Applications for this product include door thresholds
and high impact areas.
4. This product can be manufactured by general wood processing tools; It can be drilled, sawed, nailed and
dig It is the same as wood manufacture processing, even better than wood. It is the best substitute to wood,
aluminum and composite product.
1.Storage industry: for packing case and wood-polymer tray, etc
2.Automobile industry: such as door material, carriage material and ceiling material, etc.
3.Transportation: such as fences on expressway and railway, isolating wallboard, rail crosstie, etc.
4.Architecture industry: such as architecture mould, movable rooms and materials for door, window, stair
handrail, decorative materials and floor materials, etc.
5.Urban scenery: such as pavilion, chair, flower box and plank floor, etc.
|Product Name||Vacuum laminating machine|
|Total Power||28.5 kw|
|Valid length||2730 mm|
|Valid width||1250 mm|
|Effective height||50 mm|
|Maximum temperature||150 ºC|
|Vacuum pump||Spiral High Speed mute 200L|
|Cylinder quantity and diameter||4-Ф200 mm 2-Ф100 mm|
|PVC cutting||Pneumatic cutting|
|Control form||Stand-alone computer cabinet|
|Heating mode and Medium||Conductivity Thermal Cycle|
|Control mode||Siemens PLC|
|Number of workbenches||Two|
|Weight of the whole machine||15000 kg|
1. Long service life, easy to operate
2. Low power consumption
3. Good quality product
