PVC Furniture Foam Board Machine , Automatic Double Conical Screw Extruder

Brand Name:	AORUI
Model Number:	SJSZ80/156, SJSZ92/188
MOQ:	One Set
Price:	Negotiation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, UL, CSA, ISO9001

Plastic Processed:

PVC

Screw Design:

Double Conical Screw

Voltage:

380V 50HZ

Certificate:

CE ISO9001

Condition:

New

Place Of Original:

Shandong, China

Packaging Details:

Fumigation wood,film, pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets Per Month

Highlight:

PVC Foam Board Production Line

Foam Sheet Extrusion Line

Product Description

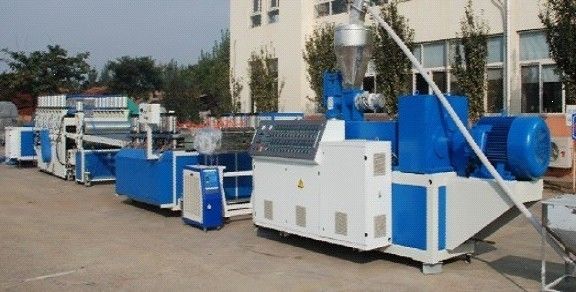

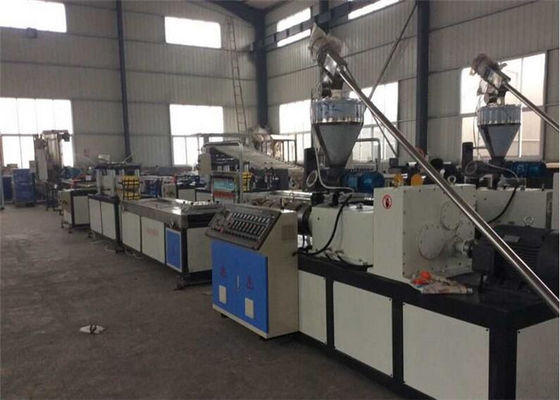

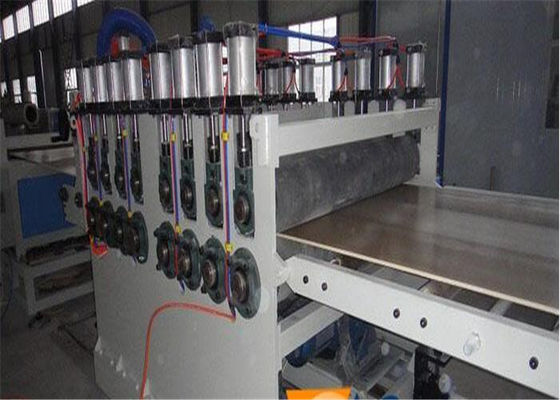

PVC Furniture Foam Board Machine , Automatic Double Conical Screw Extruder

Main Designing Parameter of production line
1.1 Power condition:380V/ 3phase/50HZ (or customized)
1.2 Finish board specification:L=980mm; Thickness δ=1.0~9.0mm
1.3 Line speed: 0.6-8m/min Capacity:6~12Tons/24hour
1.4 Material:PVC+CACO3
Proportion of PVC resin and calcium carbonate powder PV= 1 :2~3

Description:

1.PLC Computer automatic control system
2. Adopted International famous brand for all electric components
3.Synchronization control system to ensure main extrusion speed can synchronous with haul-off speed to avoid board break occurring
4.Screw fracture prevention control system ( A software system to control and adjust the screw running speed)
5.Auto board stacking system (save labors)
6.Anti blocking mold system
7.Vacuum loading and dust collector system

Specifications:

Model	GYF1220-A	GYF1220-B	GYF1500-C
Extruder	GSZ80/156	GSZ80/173	GSZ92/188
Max output(kg/h)	350	600	650
Die width(mm)	1320	1320	1550
Production width(mm)	1220	1220	1400
Power(kw)	146	176	205

Main Features

PVC crust foam board has such characteristics as sound separation, sound absorption, heat separation, temperature-keeping,etc.
The material is incombustible, it is safe for use.
All series of products have property ofmoisture proof, mildew proof, water resistance; its vibration resistant effect is good.
All series of products have property of weathering proof, its luster may remain forever, and it is not easy to be ageing.
