Double Conical Screw PVC Foam Board Machine , Plastic Trash Box Foamed Board Machine

Brand Name:	AORUI
Model Number:	SJSZ80/156, SJSZ92/188
MOQ:	One Set
Price:	Negotiation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, UL, CSA, ISO9001

Condition:

New

Automatic Grade:

Fully Automatic

Screw Design:

Double Screw

Brand Name:

Aorui

Raw Material:

PVC

Model Number:

SJSZ80/156

Voltage:

380v 50hz

After-sales Service:

Engineers Availiable To Service

Packaging Details:

Fumigation wood,film, pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets Per Month

Highlight:

Foam Sheet Extruder

Foam Sheet Extrusion Line

Product Description

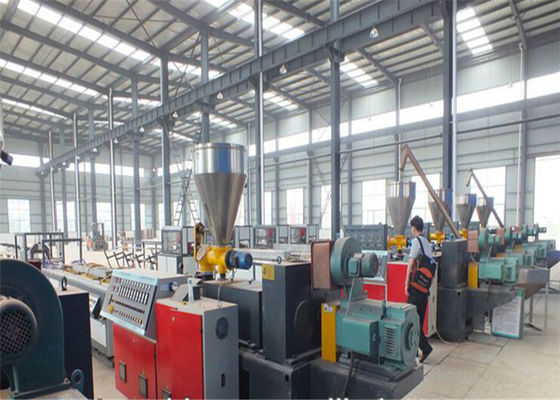

Double Conical Screw PVC Foam Board Machine , Plastic Trash Box Foamed Board Machine

MAIN PARAMETERS OF PVC FOAM BOARD:
Width: 1220mm
Length: 2440mm
Thickness: 3-40mm
Density: 0.38-0.8g/cm3
Output: 350-400kg/h or 550-600kg/h or 700kg/h, it depends on the choice of extrud

Main Technique Parameter

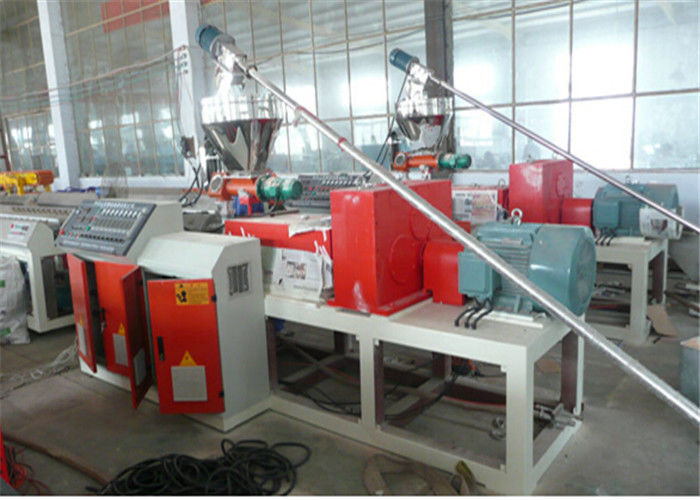

1, Conical double screw extruder SJSZ-80/156

A) Output: 300-400kg/h
B) Transmission system:
High torque output vertical reducer gear box
Structure: Vertical
Provided with outside-circulation cooling system
Imported thrust bearing and high-torque output
Material of Gear: 20CrMnTi, with gear grinding technical treatment and cementite

2. Mold
A) Structure: Special design for PVC WPC board
B) Width of die: 1400mm
C)Thickness: 12-20mm
D) Material: 5CrNiMo, high quality alloy

3, Vacuum calibrating and forming table
Max. Calibrating width: 1450mm
Calibrating table length: 2000mm
Vacuum pump power: 5.5kw*2 units
Max. Exhausting volume: 80m3/min
Water pump power: 4kw

4, Cooling bracket
A) Total length of roller bracket 5000mm
B) Cooling Roller
Diameter: Ø 63mm
Length: 1320mm

5, Haul-off unit
Max. Pulling width: 1450mm
Max pulling thickness: 20mm
Pair roller qty: 7 pairs
Driven motor power: 5.5kw

6, Transverse cutting bracket

Rack type synchronize pressing unit
Special design flat cutting motor: 2.2kW
With non-pole cylinder left and right moving system

ENVIRONMENTAL CONDITION:

Location	Indoors
Power Supply	No dangerous area
Humidity	≤95%
Temperature	0-40ºC
Power	3-phase, 380V, 50Hz
Total Installed Power	<300KW
Cooling Water	≤25ºC ≥0.3MPa, outdoor water tank: 20-30m3, water circulated with production line
Compressed air	0.3 m³ /min, >0.5MPa, Equipped with 5.5-7.5kw air compressor
Production Line Dimension	25m3m3m

Application:

Mainly used for producing pvc foam board

Competitive Advantage:

1. good after-service

2. spare parts are free

3. guarantee:one year or according to customer’s requirement.

4. advanced technology and best quality

5. international certification standard.

6. our engineer help and teach customer to test the machine.
