Product Details:
|
| High Light: | double screw extruder,twin screw extrusion machine |
||
|---|---|---|---|
PVC Double Plastic Pipe Extrusion Line 60KW - 120KW PLC Control
Quick detail:
Pipe Material : PVC
Power : 60-120KW
Weight : 8.5ton
Screw design : double screw
After-sales Service Provided: Engineers available to service machinery overseas
mould: change molds to produce different pipe products.
Description:
The working process of PVC conduit pipe making machine:
Raw material+additive → mixing → feeding → conical double screw extruder → "one mould four pipes"mould →

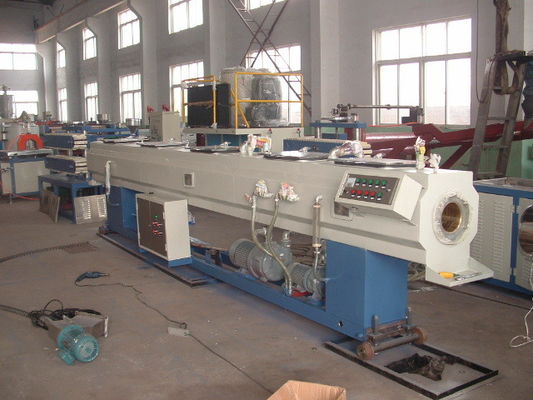

vacuum calibration tank → haul-off → cutting machine → stacker
1. Easy operation: The four pipes work independently without effect on each other.
2. Independent vacuum and low power consumption: There is only one vacuum tank of 2.2KW for four pvc pipes.
3. Chipless cutting: high cutting speed and no chip.
4. Mobile printing system: controlled by computer with accurate orientation and only need one printer.
5. The PVC conduit pipe making machine can save place and time.
6. If using SJSZ80/156 extruder, Max. pipe diameter can reach 63mm.
7.Pipe diameter range :16-63mm
Output : 120-180KG
Production speed 1-12m/min
Control: PLC
Motor: Siemens
Certification:CE UL CSA
Specifications:
|
Main Technical Parameters |
||||||
|
MODEL |
PVCG-110 |
PVCG-160 |
PVCG-250 |
PVCG-315 |
PVCG-400 |
PVCG-630 |
|
MATCHED EXTRUDER |
SJZ51/105 |
SJZ65/132 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJG92/188 |
|
OD RANGE(mm) |
50-110 |
50-160 |
75- 250 |
110-315 |
200-400 |
315-630 |
|
LENGTH OF VACUUM CALIBRATOR TANK(mm) |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
|
HAUL SPEED(m/min) |
0.6-6 |
0.5-5 |
0.4-4 |
0.3-3 |
0.2-2.5 |
0.2-1.5 |
|
INSTALLED POWER(kw) |
67 |
85 |
95 |
125 |
135 |
255 |
|
TOTAL LENGTH9(mm) |
17000 |
18000 |
20000 |
20500 |
28000 |
30000 |
Applications:
It is mainly used to produce PVC conduit pipe.
Competitive Advantage:
1. good after-service
2. spare parts are free
3. gurantee:one year or according to customer’s requirement.
4. advanced technology and better quality
