Product Details:
|
| Plastic Processed: | PVC | Condition: | New |
|---|---|---|---|
| Certificate: | CE Certificate | Voltage: | 380V 50HZ |
| Motor Brand: | Siemens | Place Of Original: | China |
| Brand Name: | AORUI | Warranty Time: | 1 Year |
| Motor Power: | 55kw | Port Of China: | Qingdao Port |
| High Light: | 50HZ Plastic Furniture Board Making Machine,WPC Crust Board Production Line,PVC Crust Board Production Line |
||
PVC Foam Board Machine , Plastic Furniture Board Making Machine , WPC PVC Crust Board Production Line
Quick details:
1.PVC foramed plate is a late-model plate of surface crusting with its core layer under foaming treatment which ensures the smooth surface, light weight and strong indensity, and it can be processed like wood plate. PVC foamed plates are widely used in fields of advertise lettering, construction, decoration, windows and doors of furniture, etc.
2.PVC foam board, also called Chevron board and Andy boards, its chemical composition is polyvinyl chloride, it is Widely used in buses, train cars roof, box core, interior panels, building wall panels, decorative panels, office, residential, public building, commercial decorative frame, clean room with board , ceiling panels, screen printing, computer lettering, advertising signs, displays, signs with the board album board industry and chemical corrosion engineering, thermoforming parts, refrigerator with panels, special cold project, environmental protection plate mold, sports equipment, breeding timber , waterfront facilities, moisture, water-resistant material, art materials and a variety of portable partitions instead of glass ceiling and so on.
Description of PVC Foam Board Machine:
1.Concise production process
Raw material(consist of PVC powder, CaCO3,chemical additive,etc)→ Mixed by heat/cooling mixer→Automatic spring up loader(to spring up mixed material to silo)→Conical twin-screw extruder(material conveyed to extruder by automatic feeder device from silo)→Calibration Platform(to make surface of board to be smooth and slick)→Cooling Bracket(to cool down board)→Haul Off system→Side Trimming system(to cut side of board)→Blade cutter(with transverse blade cutter to cut board by length)→Stacker→Inspection→Packing
2.This WPC board production line uses PVC and wood fiber as raw material, by semi-crust or full-crust foaming technology, to make WPC solid boards/panels with low density for 0.45-0.8gram/cm3, the WPC foam boards are widely used for making furniture panel, construction formwork, partition wall
Technical parameters:
|
Model
|
Semi-skinning foaming board extrusion line
|
co-extrusion foaming board line
|
||
|
Production width (mm)
|
1220
|
1560
|
2050
|
1220
|
|
Production thickness (mm)
|
5-20
|
8-18
|
8-15
|
5-20
|
|
Extruder
|
SJZ 80/156
|
SJZ 92/188
|
SJZ 92/188
|
SJZ 80/156 + SJZ 65/132
|
|
Max. Capacity (kg/h)
|
400
|
550
|
550
|
500
|
|
Motor power (kw)
|
75
|
132
|
132
|
75+37
|

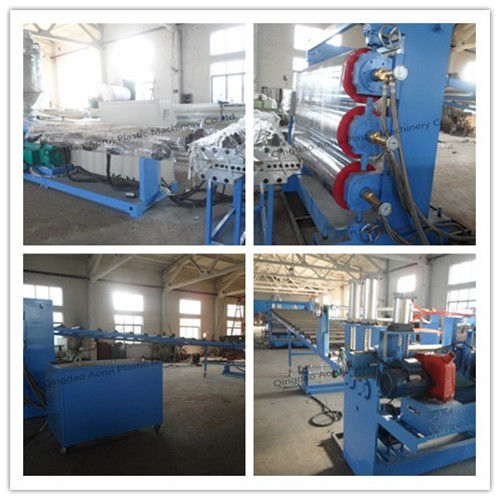

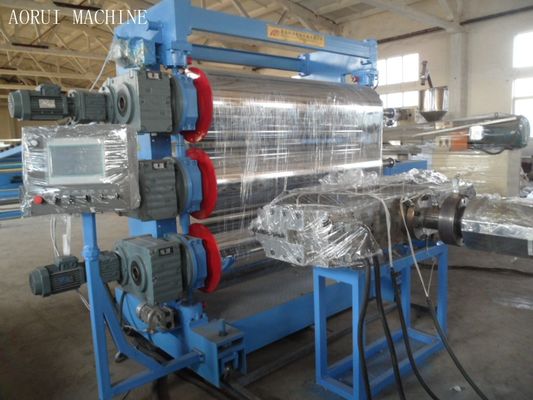

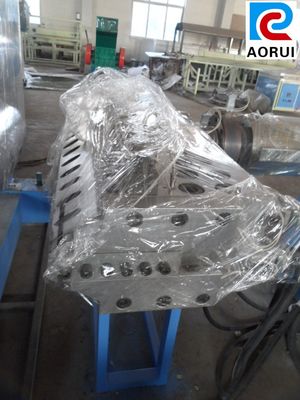

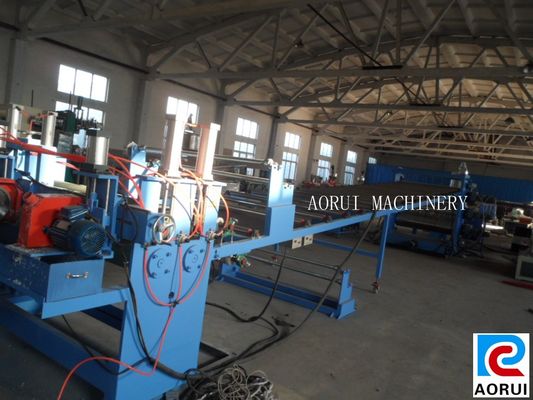

Machine display:
