Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Application: | Foam Board | Place Of Original: | Qingdao City |
| Voltage: | 380V 50HZ | Warranty Time: | 1 Year |
| Automatic Grade: | Fully Automatic | Certificate: | CE ISO9001 |
| High Light: | Foam Sheet Extruder,Foam Sheet Extrusion Line |
||

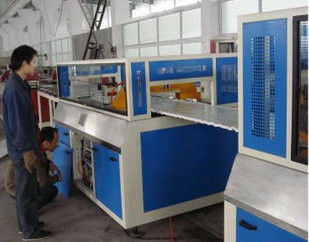

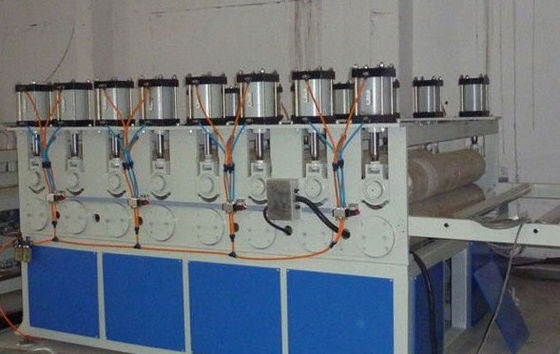

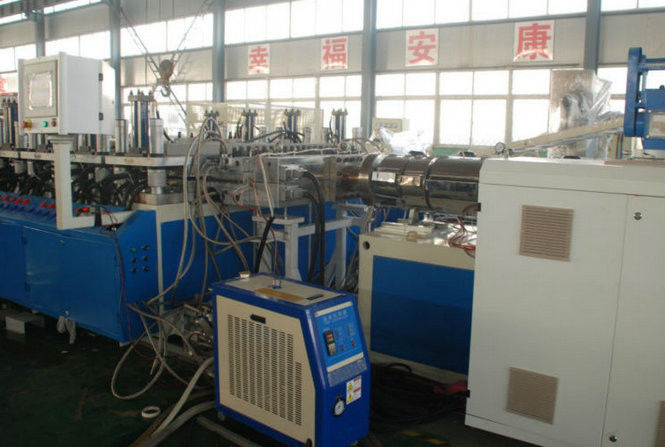

PVC Three Layers Foam Board Machine for Cupboard , Multi-Layer Foamed Board Extruder
Quick detail:
1. Suitable resin:PVC resin+wood powder+chemical additives
2.Line speed: Max 1.5 m/min
3. Max output: 350 kg/h
4. Outer dimension 28 * 2.5 * 3 m
5. Weight :15T
6. Total power: 120 kW
7. Power supply 380V±10%,50Hz; controling power supply:220V±10%
Description:
1.Our PVC foam board machine includes the special Twin-screw extruder, mould and other auxiliary machines. We use twin-screw extruder with compact structure, superior performance. Besides the screw and barrel and die are designed by our company and made in world famous manufacturers.
2.And use the high-performance alloy steel for professional processing. So the machine has the advantages of uniform plasticizing, stable extrusion, high output, and long life. We can supply you the best material formulation and all of technology. We have several thousand kinds of formula through 8 years' researches. PVC or WPC foam board production line with big output, stable extrusion, high foaming, good and wear-resisting surface and so on.
3.All series of products have property of moisture proof, mildew proof, water resistance, its vibration resistant effect if good. All series of products have property of weathering proof, its luster may remain forever, it is not easy to be ageing. This product is light, storage & transport, construction are rather convenient. This product can be worked with normal tools for wooden material. Drilling, sawing, nail, planing, bonding can be conducted like wooden material. It is suitable for thermal shaping, thermal bending and fold processing. It can be welded, it can also be bonded with other PVC material. The surface of this product is smooth, it can be printed.(Clean the surface before printing.)
| PVC WPC foam board machine |
|
|||
|
|
Model
|
board width
|
board thickness
|
Capacity
|
|
PVC foam board
|
SJSZ80/156
|
915-1220mm
|
3-20mm
|
250-350kg/h
|
|
SJSZ80/173
|
1220-1830mm
|
3-30mm
|
350-500kg/h
|
|
|
SJSZ92/188
|
1220-1830mm
|
5-40mm
|
400-600kg/h
|
|
Competitive Advantage:
1. arrange technical personnel to install debugging.
2. Free one-year after-sale service is provided from the arriving date.
3. Free training for customer workers.
