PET Recycled Film or Bottle Flakes Granule Machine , Non-Woven Granule Extrusion Line
QUICK DETAIL:
1. Raw material:PET waste scrap(filamentous and bulk),cleaning PET bottle flakes.
2. High-precision pelletizing.
3. Efficientive cold-cutting.
Description:
PET plastic recycling is generally used in PET bottles like crushing, drying, heating plasticization and then granulation. After processing the formation of aggregates PET is made for PET related products. In particular as a greater amount of synthetic textile raw materials. Since PET bottles were large-scale used in the beverage, tableware, and also because of health and other reasons, it can only use one-time, so PET bottle recycling equipment has been concerned. General PET bottles from the bottle, bottle trailers, labels are PE, they also can recovery and granulation.
Applications:
1. Screw components designed by computer aids is kneading type, has excellent self-cleaning function,
the new kneading block design effectively avoid the problems of overheating and energy consumption.
2. According to process system and formula requirements, the unit can optimize its L/D ratio, barrel structure,
screw array, venting number and location, feeding method, electrical control methods etc. for rational
allocation.

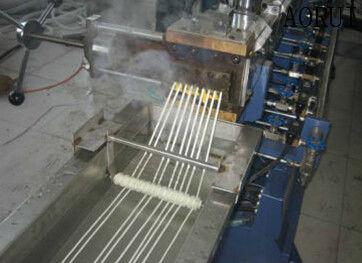

3. Granulation system: water-cooling strand pelletizing, air-cooling die face hot cutting,
water ring die face hot cutting, Eccentric water mist hot cutting, water and underwater die face hot cutting and so on.
Specifications:
|
Model |
screw diameter (mm) |
L/D |
Capacity |
Main motor power(kw) |
Agglomerator power |
Line length |
|
TSSK65 |
63 |
32-62 |
250-300 |
75 |
75 |
14 |
|
TSSK75 |
72 |
32-64 |
300-400 |
90 |
90 |
16 |
|
TSSK92 |
92 |
62-64 |
500-600 |
250 |
132 |
18 |
Competitive Advantage:
1. good quality
2. CE & ISO
3. Low consumption
