| Brand Name: | AORUI |
| Model Number: | SJSZ65/132 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 30 sets per quarter |
Plastic PVC Pipe Extrusion Line , 16-63mm PVC Pipe Making Manchinery
Quick detail
1. PVC pipe production line
2. The pvc pipe mainly used in the area of agricultural water supply system , architectural water supply system
3. simple operation , reliable property , etc.
Description:
1.The drawing machine includes two-claw type, three-claw type, four -claw type ,six -claw type , eight-claw type , etc. saw cutting or planet cutting can be applied , it is additionally applied with length measuring meter and thickness increasing device , the propertyof machine group is reliable , the production efficiency is high
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts; Simple structure in linear type ,easy in installation and maintation; Optional to adopt conical twin screw extruder and parallel twin screw extruder;
3. PVC pipe making machine is equipped with conical twin screw extruder or parallel twin screw extruder, adopt Optimized spider die with chrome-plating, ensure the melt plasticization homogenous and distribution uniform.
4. PVC pipe extrusion production line is mainly uesd to produce water pipe and drain pipe for agriculture and construction , underground installation pipe for wire and cable , as well as various kind of diameter and wall thickness pipes. For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.

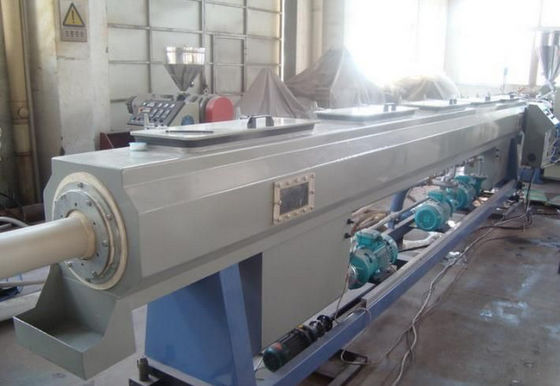

5. Beautiful and practical stainless steel body for vacuum calibration and cooling units, unique multi-sections vacuum system ensures the stable sizing and cooling for pipes; Special cooling system improves the cooling efficiency; Paticular water position, water temperature system make the machine more intelligent.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
1. Water supply, drainage pipelines in building;
2. Rainwater drainage pipelines in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
Our competetive advantages:
1. high quality and resonable price
2. widely used
3. easy to operate and high output
4. we are a professional industrial factory , we have inpendent technical team who focus on making machine , all the products are made by our technical team.
5. we have more than 15 years experiences in this field ,
