Product Details:
|
| Automatic Grade: | Fully Automatic | Voltage: | 380V50HZ |
|---|---|---|---|
| Dimension: | According To Model | Condition: | New |
| Screw Design: | Single Screw | Place Of Origin: | Shandong , China |
| Material: | PVC | ||
| High Light: | double screw extruder,two screw extruder |
||
PVC Reinforced Garden Hose Pipe Making Machine / Plastic Pipe Machine
Quick detail
The pvc fiber enhancing soft pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid , it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application(solor energy water heater , gas -jar) , also it can be used in irrigating garden and lawn.
Application:
This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building
Sepecification:

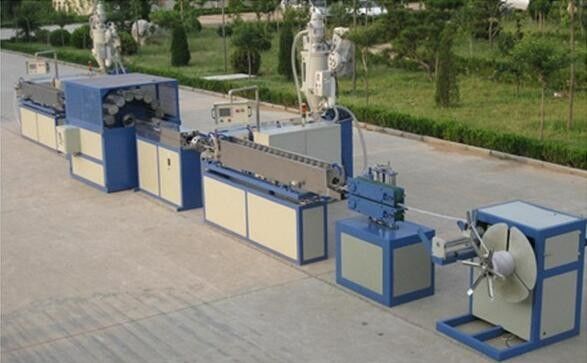

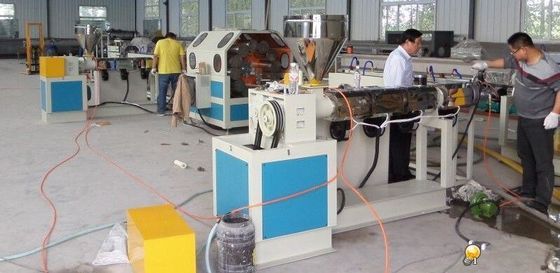

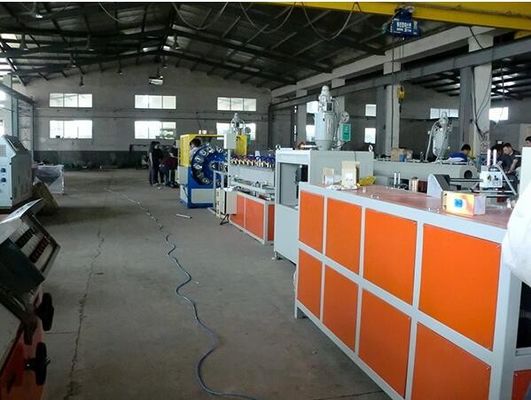

1.PVC fiber-reinforced hose production line mainly consists of extruder, spray water cooling tank, haul-off unit, fiber coiling machine and winding machine. It is rational in configuration, unique in construction, reliable in performance, simple in operation, convenient for maintenance and high in continuous capability; and has been greatly accepted by the customers.
2. Equipment list of this pvc fiber reinforced production line:
A. Double Screw extruder
B. Mould
C. Vacuum sizing cooling water tank
D. Spray cooling water tank
E. Haul off machine
F. Cutting machine
G. Winder
3. Process:

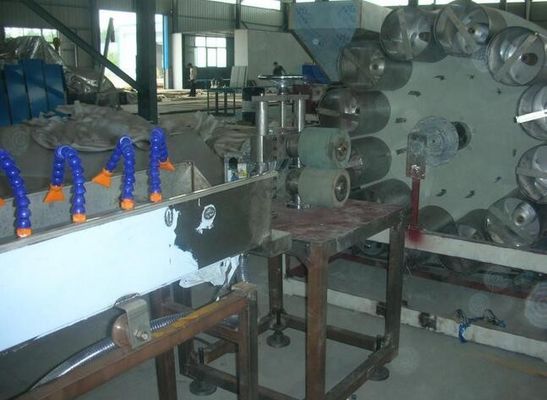

conveying feeding→single screw extruder→extruding mould→spray cooling water tank→belt haul-off→fibre winder→warm up oven→
single screw extruder→mould→spray cooling water tank→belt haul-off →meter measure→winder→finished product inspecting&packing
4.PVC fiber reinforced hose, also known as PVC network pipe, commonly known as plastic snakeskin tube, suitable for transporting the gas and liquid with pressure or corrosive , widely used in machinery, coal, petroleum, chemicals, agricultural irrigation, construction, civil (solar water heaters, gas cylinders) and other fields.
Technical parameters:
| Model | LGSJ65 | LGSJ45/30 |
| Extruder | SJ65/28 | SJ45/30 |
| Diameter Range(mm) | Φ12-Φ50 | Φ6-Φ14 |
| Output | 40-75 | 20-40 |
| Installed Power(KW) | 50 | 35 |
Our Advantages:
1.Have many years experience , we have more than 15 years experience in this field
2.good pre-sales and after-sales service
3.easy operate high output
4.12 months gurantee period
