PVC Braided Hose Twin Screw Extruder Machine , Flexible Plastic Pipe Making Machine

PVC Braided Hose Twin Screw Extruder Machine , Flexible Plastic Pipe Making Machine

Quick detail

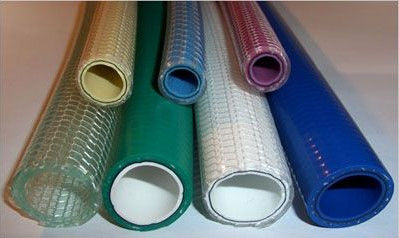

The pvc fiber enhancing soft pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid . it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application(solar energy water heater , gas-jar) , also it can be used in irrigating garden and lawn.

Description:

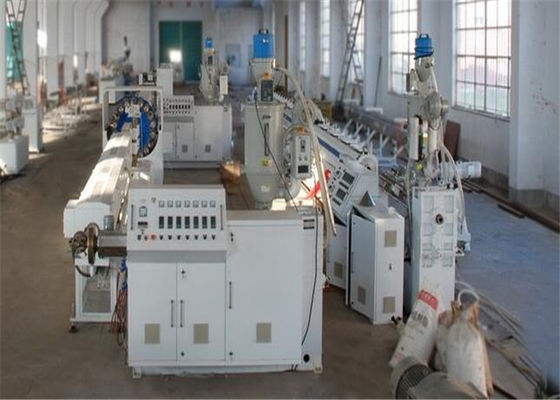

1. The PVC spiral reinforced pipe have the advantage of pressure and corrosive resistance, negative pressure and bend resistance. It is consists of twin screw extruder , mould , water cooling tank , haul-off machine , winding machine , cutter machine , stacker.

2. The pvc fiber reinforced pipe extrusion machine , it is capacity is 70-100kg/h , the motor power is 22kw , the pvc pipe extrusion machine  has various color , such as white , bule , yelloe , black or according to customer's reuqirements.

3. Process flow of pvc fiber hose production line:

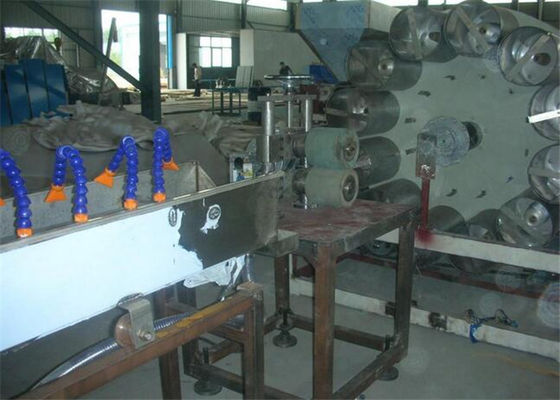

High speed kneading machine (mixing materials)---mould---extruder 1(innermost layer PVC pipe)------cooling tank 1---hauling machine 1 ---winding machine (fiber line that is the second)---dryer---extruder 2(the most outer PVC pipe )----cooling tank 2---hauling machine 2---coiling pipe bender ----package.

4. This line is designed to produce PVC fiber reinforced hose, the wall of which is three layers, outer and inner layer are soft PVC hose, middle layer is terylene fiber network, which has good chemical and physical property.

.

Main Technical Parameters:

Application:

1.It is really the best choice for conveying air ,water, gas, oil and some other liquid and gas material with its working temperature ranges from-5 to 65.

2.Now also widely used in pouring the garden ,lawn.Suitable for conveying the pressure or corrosive gas, liquid .widely used in the machinery , coal mineral , petroleum .chemical industry ,agriculture irrigation ,construction, civil (solar water heater ,gas cylinder)etc.

Our advantage:

1. we supply all the support , such as engineers , drawings , and instruction manual.

2. we could supply trun key project to you. fast develivery time , and good quality.

3. Good quality and service , our engineers availiable to service , if clients need , our engineers can train the local workers until they can operate the machine.
