PVC Corrugated Double Wall Pipe Twin Screw Extruder / Extrusion Production Line

PVC Corrugated Double Wall Pipe Twin Screw Extruder / Extrusion Production Line
PVC Corrugated Double Wall Pipe Twin Screw Extruder / Extrusion Production Line PVC Corrugated Double Wall Pipe Twin Screw Extruder / Extrusion Production Line PVC Corrugated Double Wall Pipe Twin Screw Extruder / Extrusion Production Line

Large Image :  PVC Corrugated Double Wall Pipe Twin Screw Extruder / Extrusion Production Line

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

PVC Corrugated Double Wall Pipe Twin Screw Extruder / Extrusion Production Line

Description
Condition: New Autoamtic Grade: Fully Automatic
Screw Design: Double Screw Voltage: 380V 50HZ
Port: QingDao Processing Type: Extrusion
Plastic Processed: PVC CERTIFICATE: Ce & Iso9001
High Light:

two screw extruder

,

twin screw extrusion machine

PVC Corrugated Double Wall Pipe Extrusion Production Line , Corrugated Pipe Extruder



Quick detail:



1. single wall double wall corrugated pipe extrusion machine have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used as wires of the up-market cars.



2. APPLICATION:They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.



Description:

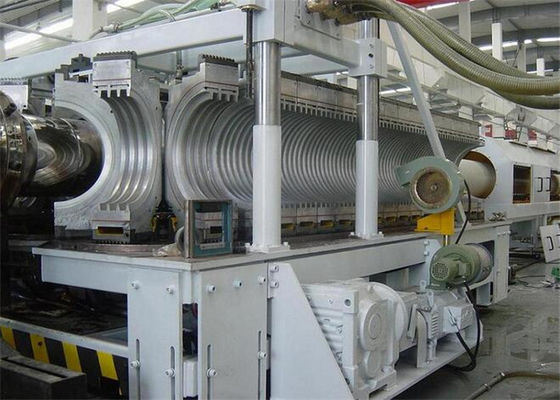

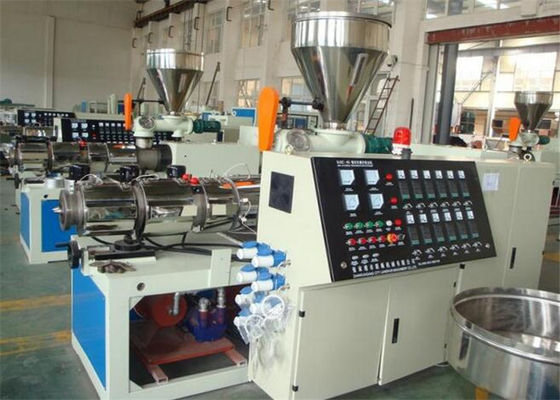

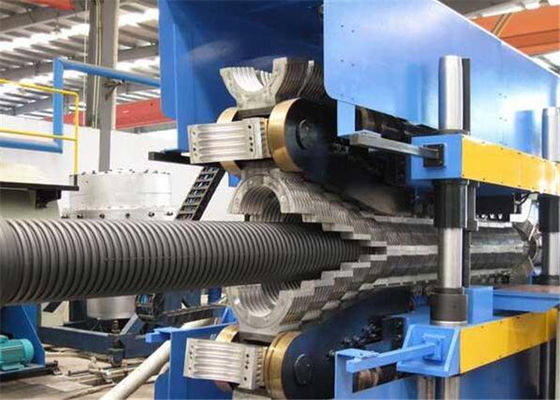

1. This series machine is composite o vibrating sieve, high speed mixer, cooling machine, plastic feeder, conical twin screw extruder(or single screw extruder), machine head, forming machine(for double wall corrugation pipe or single wall corrugation pipe), plastic pipe belling machine, stacker, water-cooling machine, air compressor etc which is mainly used to produce PVC, PE plastic double-wall and single-wall corrugation pipe.



2. The extruder can be designed according to the different materials

HDPE material uses high efficiency single screw extruder

PVC material uses conical double-screw extruder

It adopts excellent screw and new groove sleeve design,which makes the extruder with bellow advantages:





Specifications:



Screw and Barrel

800~900HV

Barrel Screw and Barrel Material 38CrMoAlA,Nitriding,

Surface Chrome plate

Nitriding Layer Thickness:0.5~0.7mm

Surface Rigidity:800~900HV

Screw Diameter Φ80/156mm
Effectual Working Length of Screw 1800mm
Speed of Screw 1~37rpm
Main Motor Power 55KW
Main Motor Timing Method 55KW ABB inverter
Force Feeder Motor Power 0.75KW
Force Feeder Motor Timing 0.75KW ABB inverter
Barrel Heating Method Foundry Aluminum Heater, include force cooling fan,

Barrel Heating Power

24KW

Capacity

250~380kg/h

Main Electrical Equipment

Japanese OMRON Temperature Control Meter,Siemens Contactor,

Shanghai TAYEE Button and Indicator Light,

Suzhou ChuangShuan digital display meter





Applications:



The double wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.







Competitive Advantage:



1. good quality and stable operate



2. high speed plastization



3. CE & ISO9001 certificate



4. good pre-sales and after-sales service
