PVC Plastic Pipe Production Line Twin Screw Extruder / PVC Pipe Extrusion Machine For Irrigation / Pipe

Brand Name:	AORUI
Model Number:	SJSZ51/105
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE & ISO9001

Application:

Drian Pipe

Brand Name:

AORUI

Drawing Speed:

15m/s

Certificate:

CE ISO9001Certification

Place Of Origin:

Shandong,China

Pipe Diameter:

20-160mm

Dimension:

According To Model

Voltage:

380V50HZ Or Customized

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quarter

Highlight:

two screw extruder

twin screw extrusion machine

Product Description

PVC Plastic Pipe Production Line / PVC Pipe Extrusion Machine For Irrigation

Quick detail

1. Process Flow:

Loader→Conical double-screw extruder→Mould→Vacuum forming water tank→Spraying cooling tank→Haul-off machine→reversible stacker

Auxiliary:Belling machine,Mixer,Miller,Crusher

2. Our machine adopts ABB inverter,Omron/Delixi temperature controller,Schneider contactor and Simens switcher.High quality electrical component could meet the request of durable running at higher temperature in the place such as Southeast Asia and Africa.

Description:

1.SJSZ65/132 conic tiwn screw extruder

1) motor power: 37kw

2) speed control: by Delta or Fuji inverter

3) temperature controller: from Omron Company

3: vacuum calibration tank

6m long and name brand vacuum pump and water pump

4: pedrail traction machine

motor power: 3kw

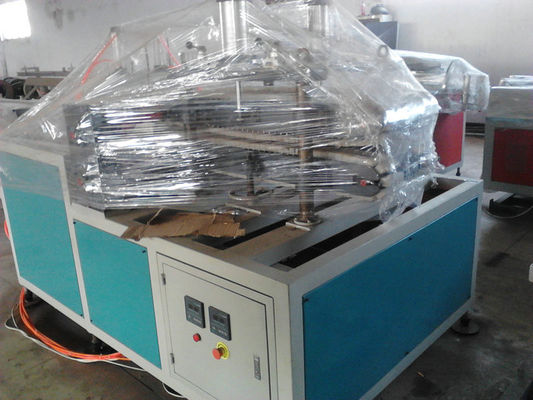

5: cutting machine

motor power: 2.2kw

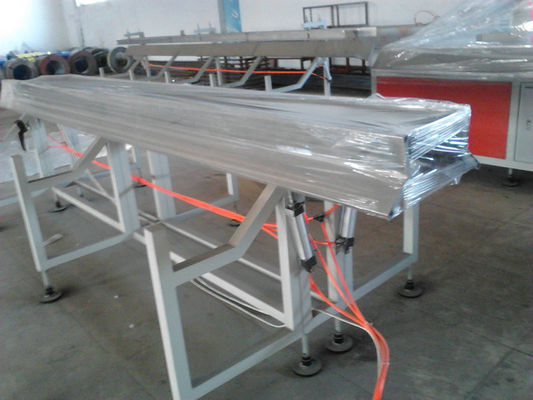

6: stacker

material: stainless steel

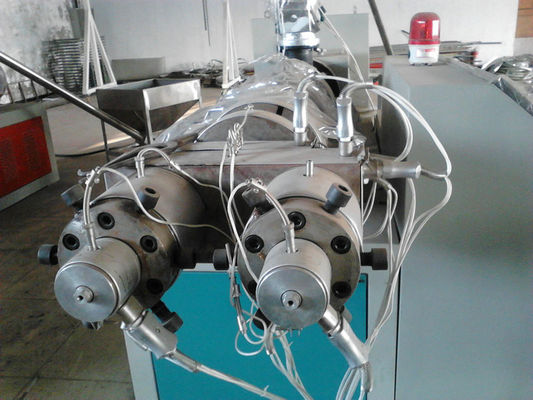

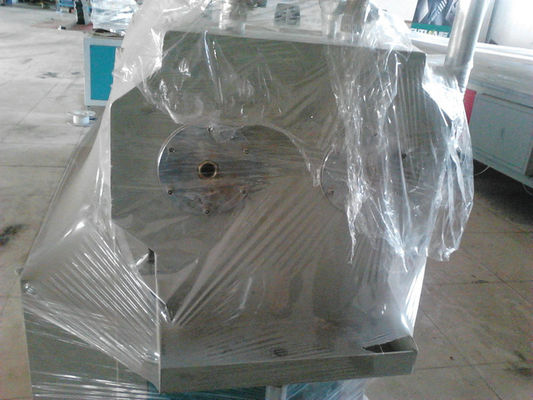

7: moulds

2. The production line is mainly used in the production of PVC pipe,The producing line can be adjusted according to clients' requirements .

3. This production line usually includes : feeder , conical twin screw extruder , pipe mould , vacuum calibration tank , Spraying box , haul-off machine , cutter machine , stacker

Main Technical Parameter

Specification	GF63	GF110	GF160	GF250	GF400	GF630	GF800
Item	diameter 16-63	diameter 16-110	diameter 32-160	diameter 63-250	diameter 160-400	diameter 315-630	diameter 450-800
Diameter of pipe material	16-63	16-110	32-160	63-250	160-400	315-630	450-800
claw number of drawing machine	2	2	2	3	4	6	8
pulling force	6	8	11	20	30	40	50
drawing speed	15	12	8	9	4	2	2
total power of auxiliary machine	14	14	14	21.5	41	56	64

Application:

PVC pipe is widely used in drainage system,irrigation,electric conduit and so on.

Our competetive advantages:

1. good pre-sales and after-sales service

2. our engineers can go to aborad to installment the machine and teach the workers

3. easy to operate and high output
