PVC Foam Board Machine
Created with Pixso.

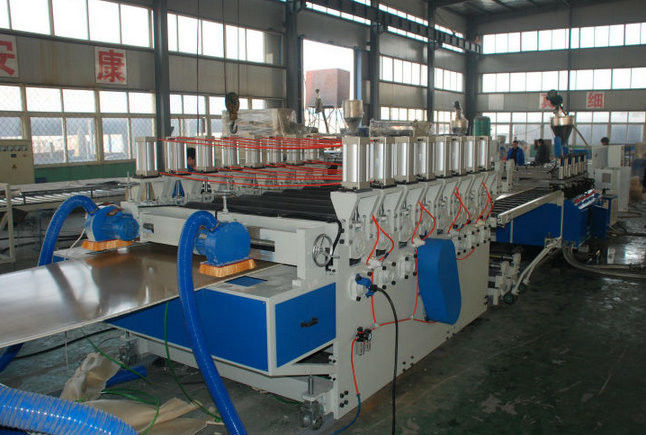

Double Screw PVC Foam Board Machine Fully Automatic 3000 mm width

Double Screw PVC Foam Board Machine Fully Automatic 3000 mm width

Brand Name: AORUI
Model Number: SJSZ92/188
MOQ: One set
Price: Negotiable
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE UL CSA ISO9001
Certification:
CE & ISO9001
Automatic Grade:
Fully Automatic
Voltage:
380V 50HZ
Warranty Time:
1 Year
After-sales Service:
Engineers Availiable To Service
Screw Number:
Two
Condition:
NEW
Brand Name:
AORUI
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

Foam Sheet Extruder

,

PVC Foam Board Production Line

Product Description

PVC Wood Foamed Borad Extrusion Line , pvc Wood Door Panel Production Line





Quick detail:



1. PVC Fam Board Production Line



It has such characteristics as high impact resistance , high rot resistance , high temperature resistance , non-toxic , smooth surface, light , easy to thermoform,  etc.



2. Applications: such as wire plate  ,environment protection material , venting equipment , semiconductor equipment , etc.



3. Production scope: thicjness 1-30mm  width 3000mm




Description:



1. Machine Introduction Certificate: CE, ISO9001:2008, SGS,



Brand Name: AORUI
Output of PVC Board: 600kg/h
Dimension of PVC Foam Board:1220*2440*(3-30)mm
Plastic Processed: PVC and WPC
Application of Finished Board: Formwork, Furniture board, cabinet board, building template, advertisement board, wall panels, floor, roof, car and boat board etc.
Screw Design: Double-screw
Model Number: SYSJ80/156
Density of finished board: 0.37-0.85
Voltage: 380-440V
Main Motor Power: 90kw





2. Production Process Flow


Raw materials--- Mixing --- Feeding --- Extruding ---Molding --- Calibrating --- Haul-off --- Cutting--- Stacking--- Printing or Hot stamping --- Package.







3.High efficiency conical twin screw extruder., It can produce rigid pvc wpc crust/skinning foam board machine.This sheet is mostly used in transportation , advertisement,construction furniture industry ect.





Main technical parameter



Item
Description
Product size
1220mm width, length can cut at any length
Product thickness
3-30mm (ABA three layer, B is foamed layer, A is unfoaming layer)
Product application
Furniture board, kitchen cabinet, construction formwork
Density
0.45-0.8ton/m3
Raw material
PVC+wood+caco3+chemical additives
Finishing surface
Laminating, hot stamping, printing, painting







Application of cabinet furniture production line



Products characteristics

  • 1) Water proof, anti-flaming, damp proof, rot proof, mothproof, light weight, keep temperature, sound and heat insulation and shock proof etc.

  • 2) Color-way is not changed long time and not easy to aging under radiation resistance;

  • 3) This product can be manufactured by general wood processing tools; It can be drilled, sawed, nailed and dig It is the same as wood manufacture processing, even better than wood. It is the best substitute to wood, aluminum and composite product.

  • 4) It can be welded as per general welding stipulation and also stick to other PVC materials;

  • 5) Smooth surface and easy to print.







Competitive Advantage:



1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
