Product Details:
|
Condition: | New | Automatic Grade: | 1-40mm |
---|---|---|---|
Density: | 0.38-0.8mm | Voltage: | 380V 50HZ |
Capacity: | 380kg/h | Plastic Processed: | PVC |
Type: | Pvc Board Extruder | Port: | QingDao |
High Light: | Foam Sheet Extruder,PVC Foam Board Production Line |

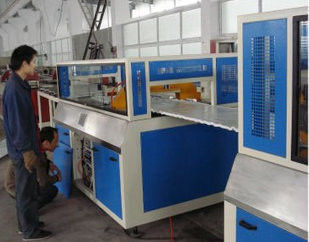

High Efficiency PVC FOma Board Proodcution Line , PVC Foam Board Making Machine For Decotative
Quick detail:
1. PVC Crust Foam Board Extrusion Making Extruder Machine(SJSZ80x156)
PVC Crust Foam Board Production Line is developed to increase highest output with lowest consumption for big producers to lower cost by large scale production. With several new technology applied.
2. PVC foramed plate is a late-model plate of surface crusting with its core layer under foaming treatment which ensures the smooth surface, light weight and strong indensity, and it can be processed like wood plate. PVC foamed plates are widely used in fields of advertise lettering, construction, decoration, windows and doors of furniture, etc.
Description:
1. Main Features of PVC/WPC Foam Plate/ Board/Sheet Production Line:Wood-plastic mould ,resembling wood in appearance,is more fixed in size than wood without cracks,curls,protu berances,and cross grains,it has the features of better physical and chemical property,to ensure higher density and longer service life.
2. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.
3. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
Main tech parameters of PVC foam board making machine
model | SJSZ45 | SJSZ51 | SJSZ65 | SJSZ80 | SJSZ92 |
screw stem diameter(mm) | 45/90 | 51/105 | 65/132 | 80/156 | 92/188 |
rotational speed of screw stem(r/min) | 1-45 | 1-45.5 | 1-38 | 1-36.9 | 1-34.7 |
effective work length of screw stem(mm) | 1070 | 1100 | 1440 | 1800 | 2500 |
main power (kw) | 15 | 22 | 37 | 55 | 110 |
cylinder heating power(kw) | 9.6 | 11.5 | 24 | 36 | 88 |
capacity(kg/h) | 70 | 80 | 250 | 360 | 1000 |
central height of machine(mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
Net weight(kg) | 28000 | 3000 | 4000 | 5000 | 5500 |
Application of pvc foam board production line
1. Wood-plastic mould can be reproduced like wood.It can be cut,planed,madea bond by glue or fastened with nalis or screws.It's easy to maintain.
2. Preserved from acid,alkali,corrosion,impervious to attacks by insects and rats,wood-plastic mould plates provide less moisture absorption.
3. The product can be recycled and degraded for environmental protection
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
