Product Details:
|
Brand Name: | AORUI | Certification: | CE&ISO9001 |
---|---|---|---|
Raw Material: | Pvc | Motor: | Siemens |
Screw Design: | Double Screw | Automatic Grade: | Fully Automatic |
Model Number: | SJSZ65/132 | ||
High Light: | two screw extruder,twin screw extrusion machine |
pvc Corrugated Pipe Production Line , Plastic Corrugated Pipe Making Machine
Quick detail
1.They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.
advatanges of our Pvc,PE single wall plastic corrugated tube extrusion machine line
2. SJ seies plastic single-wall corrugated pipe production line developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of the up-market cars.
Description:
1. This machine is mainly used to produce pvc,pp,pe single wall corrugated pipes, PVC, PP,PEelectric corrugated hose etc. This PVC/PP/PE corrugated pipe making machine adopts advanced design concept to ensure the efficient extrusion, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
2. Plastic single - wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread - passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

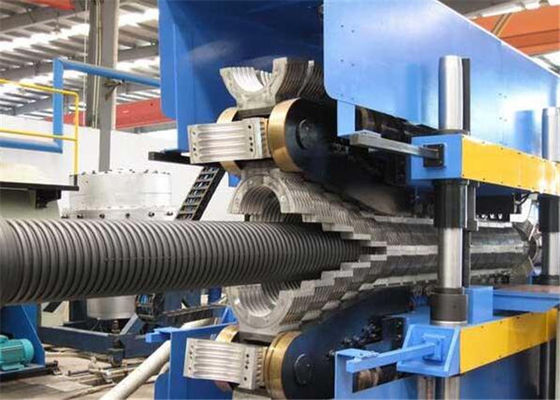

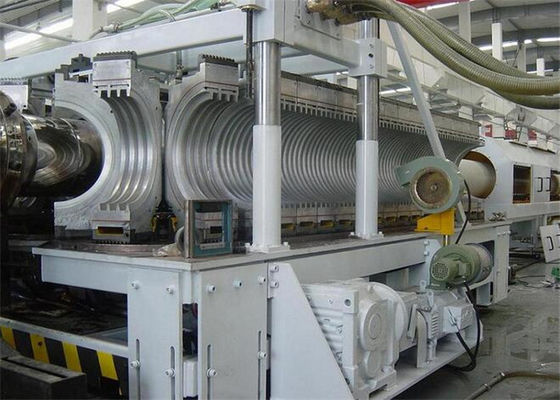

Plastic single - wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used as wires of the up-market cars.
Main Technical Parameter
Technical data
Pipe diameter range(mm) | 4.5-9 | 9-32 | 16-50 | 50-100 | ||
Main machine model | SJ-30 | SJ-45 | SJ-65 | SJ-65 | ||
Main machine l/d | 30:1 | 28:1 | 30:1 | 30:1 | ||
Production capacity kg/h | 10 | 40 | 60 | 80 | ||
Main motor capacity kw | 4 | 11 | 18.5 | 37 | ||
Moiding machine capacity kw | 1.1 | 1.5 | 1.5 | 2.2 | ||
Pair of modules | 42 | 35 | 35 | 35 | ||
Cooling mode | Water cooling and fan cooling | |||||
Production (m/min) | 6-10 | 8-12 | 8-15 | 4-8 | ||
Metering mode | inducting mode |
Application:
PE PVC Single wall Corrugated Pipe Production Line can produce pipe with heating-proof , corrosion-proof, friction-proof and high strength . And the pipe will be used in electricity/pneumatic wire conduit , Auto wire conduit , protection conduit , machine tools , electric locomative, projections installation , lights, automatic tools and other fields . It is a big market demand .
Our competive advantages:
