Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ80/156 |
|---|---|---|---|
| Place Of Original: | Shandong , China | Automatic Grade: | Fully Automatic |
| Voltage: | 380V 50HZ | Certificate: | CE ISO9001 |
| Type: | Plastic Extruder | Raw Material: | Pvc |
| High Light: | double screw extruder,twin screw extrusion machine |
||

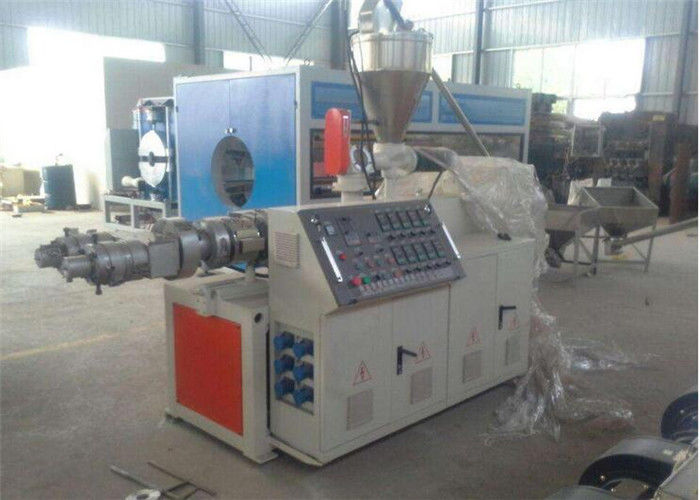

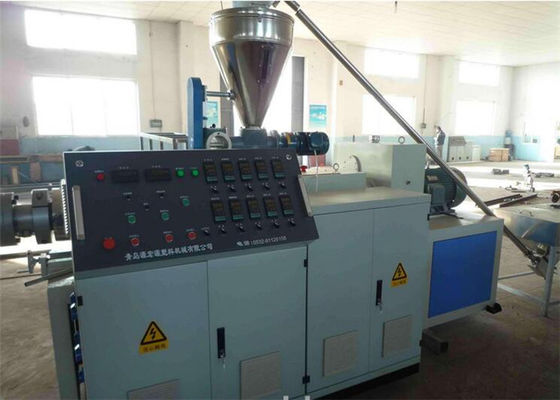

High Quality Twin Screw Extruder , PVC Pipe Twin Conical Screw Extruder
Quick detail
1. Model SJZ series double-screw plastic extruder is a kind of speical equipment for extruding of PVC powder.With different sorts of molds and auxiliary machines,it can produce all sorts of PVC plastic pipe material ,profiled material, plaste material, sliced material, bar material and granulation.
2.Each machinery is made of high quality stainless steel with the motor of Siemens.Special for waste plastic recycling, and convert to PP PE PET PS ABS PA PVC etc granules.
Description:
1. Standard Specifications:
1. Type Co-rotated twin screw extruder
2. Capacity 250kg/hr(ABS pellet) (55kw main motor)(Standard)
3. Dimension 800mm(CH), 3,400mm(L), 1,800mm(W), 1,600mm(H),
4 .Weight 2.8 ton
5. Voltage and capacity of power supply
Voltage 380 ~ 440V, 50 ~ 60Hz, 3 phase(Standard)
Capacity 88KVA(AC 55kw main motor)(Standard)
6. Barrel Nitrided steel, nitrided (Standard)
Hardness over HRC 63
L/D 40
7. Screw Segment type with Involute Spline Shaft
8. Heater Brass casted heater nine blocks 59kw
9. Temperature Control 9 Zone +2zone
10. RPM 50 ~ 440 rpm(Main motor 55kw) (Standard)
11. Main Motor 55kw of motor by SIEMENS.(Standard)
Type AC motor controlled by Inverter
Conical twin screw extruder Main Technical Standards:
| Conical twin-screw extruder | Diameter scope (mm) |
Motor(KW) | Max. Capacity (KG/H) |
Max. Lineal speed(m/min.) |
| SJZ51/105 | 16-40Dual | 18.5 AC | 120 | 10 |
| SJZ65/132 | 20-63Dual | 37 AC | 250 | 15 |
| SJZ51/105 | 20-63 | 18.5 AC | 120 | 15 |
| SJZ65/132 | 50-160 | 37 AC | 250 | 8 |
| SJZ65/132 | 63-200 | 37 AC | 250 | 3.5 |
| SJZ80/156 | 160-315 | 55 AC | 350 | 3 |
| SJZ92/188 | 75-160Dual | 110 AC | 800 | 6 |
| SJZ92/188 | 315-630 | 110 D | 800 | 1.2 |
| ATP130/26 | 560-800 | 160 DC | 1100 | 1.3 |
Our competetive advantages:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
