Product Details:
|
| Condition: | New | Screw Design: | Double Screw |
|---|---|---|---|
| Certificate: | CE ISO9001 | Application: | Construction Board |
| Motor: | Siemens | Voltage: | 380V 50HZ |
| After-sales Service: | Engineers Availiable To Service | Inverter: | ABB |
| High Light: | Board Production Line,Panel Production Line |
||
Manufacturer Of WPC Construction Template Extrusion Line , PVC WPC Construction Board Extrusion Machine
QUICK DEATIL :
1. PVC – Wood Powder Foaming Board to replace traditional plastic and real wood board.
2. Board can be reused for minimum 30 times.
3. Board can be recycled even after use countless number of teams.

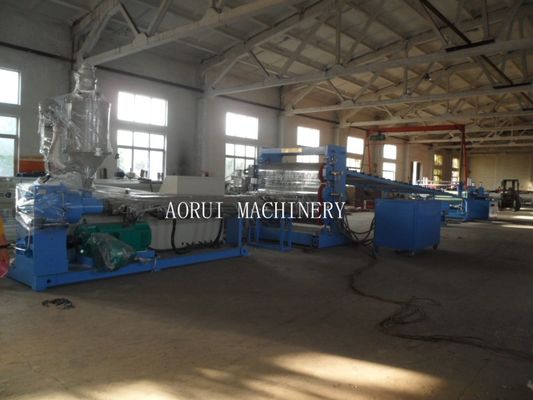

4. Photograph of Extrusion time enclosed.
5. Thickness: 6 mm to 25 mm
6. Width: Up to 1220 mm
7. Manpower: 3-4 persons required to operate plant
8. Power Supply and Installation Power: 150 KW, all Siemens brand motor .
Description:
1. The wood-plastic construction template is a new type of template to replace steel templates and bamboo plastic sheet. With light weight, impact strength, convenient assembling, high turnover, smooth surface, no moisture, no mildew, acid, does not crack, WIDTH, less joints, sawing, nailing, can be processed into any length, and many other advantages.
2. Can be repeatedly recycled more than 20 times, the price is far lower than the current construction industry to use bamboo template, and has excellent flame retardant properties, from the self-extinguishing of fire, smoke-free, without any gas. The new generation of safe green energy-saving products.
3. The extruded product with this tooling has the advantages of plastic profile and the qualities of wood, such as good hardness, good rigidity, long service life, and good machine ability. The end product is resistant to the weather and is environmentally safe.
Applications:
Architecture decoration industry: building formwork board, outdoors board, indoors decoration board,
residential house, office, separation of public building, commercial decoration frame, board used in
dust-free room.
Household decoration: bathroom cabinet board, furniture board, home decoration board, various
household shelves.
Advertisement industry:screen printing, computer engraving,ad.board,exhibition plate, logo plate.
Transport industry: ship, plane, bus, and train, floor covering, core layer, indoors decoration plate.
Industrial application: rot proof project in chemical industry, thermal shaped part, plate for refrigeration
warehous, special cool-keeping protection plate.
Other applications: construction formwork, sports apparatus, aquaculture material, seashore wet-
proof facility, water-resistant material, arts material and all sorts of light separation plate.
Specifications:
| Model | YF180 | YF240 | YF300 | YF400 | YF500 | YF600 |
| Max. width of product(mm) | 180 | 240 | 300 | 400 | 500 | 600 |
| Extruder model | SJSZ55/110 | SJSZ65/132 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJZ80/156 |
| Max. extrusion capacity(kg/h) | 150 | 250 | 250 | 250 | 360 | 360 |
| Extruder power(kw) | 22 | 30/37 | 30/37 | 30/37 | 55 | 55 |
| Cooling water(M3/h) | 5 | 7 | 7 | 8 | 10 | 12 |
| Compressed air(M3/min) | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
Competitive Advantage:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
