High Production Efficiency Twin Screw Extruder PVC Plastic Pipe Production Line

Name: High Production Efficiency Twin Screw Extruder PVC Plastic Pipe Production Line
Brand: QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1
SKU: SJSZ65/132
Availability: InStock

Brand Name:	AORUI
Model Number:	SJSZ65/132
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE & ISO9001

Model Number:

SJSZ65/132

Certificate:

CE ISO9001

Payment Terms:

TT Or L/C

Port:

Qingdao

Brand Name:

Aorui

Application:

PVC Pipe

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quarter

Highlight:

double screw extruder

twin screw extrusion machine

Product Description

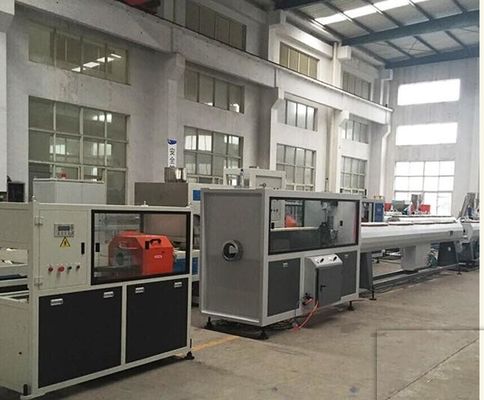

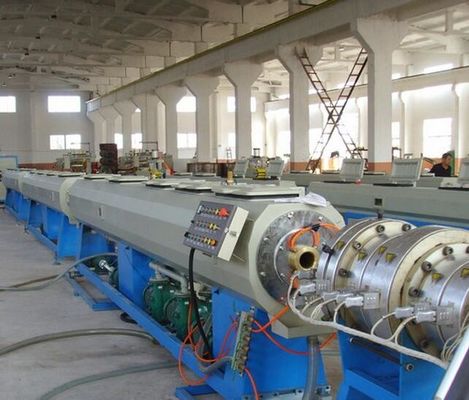

Twin Screw PVC Plastic Pipe Production Line , PVC Water Pipe Plastic Extruder Machinery

Quick detail

Diameter 16mm-800mm series plastic pipe extrusion machine production line is mainly used in the manufacture of plastic plastic pipes with various diameters and wall thickness used in the industried such as agriculture and constructional plumbing, cable laying etc, it also named plastic Pipe Production Line, plastic Pipe making machine.

Description:

1. Single screw extruder and haul-off unit have applied imported A/C inverter.Both vacuum pump and driving motor have applied exvellent products.

2. The drawing machine includes two-claw type , three-claw type , four-claw type , six-claw type ,eight-claw type , etc. Saw cutting or planet cutting can be applied , it is additionally applied with length measuring meter and thickness increasing device , the property of machine group is reliable , the production efficiency is high.

3. This line is of reliable performance and high production effeciency. Our company can also manufacture special pipe production lines. Spiral silencing pipe and core foaming pipe according to your requirements.

Main Technical Parameter

Specification	GF63	GF110	GF160	GF250	GF400	GF630	GF800
Item	diameter 16-63	diameter 16-110	diameter 32-160	diameter 63-250	diameter 160-400	diameter 315-630	diameter 450-800
Diameter of pipe material	16-63	16-110	32-160	63-250	160-400	315-630	450-800
claw number of drawing machine	2	2	2	3	4	6	8
pulling force	6	8	11	20	30	40	50
drawing speed	15	12	8	9	4	2	2
total power of auxiliary machine	14	14	14	21.5	41	56	64

Technical and after-sales service:

The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
